358 anti climb fence

358 High Security Fence

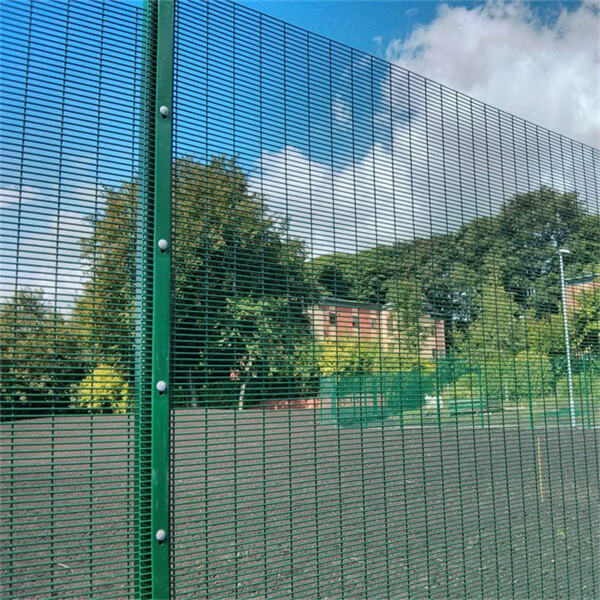

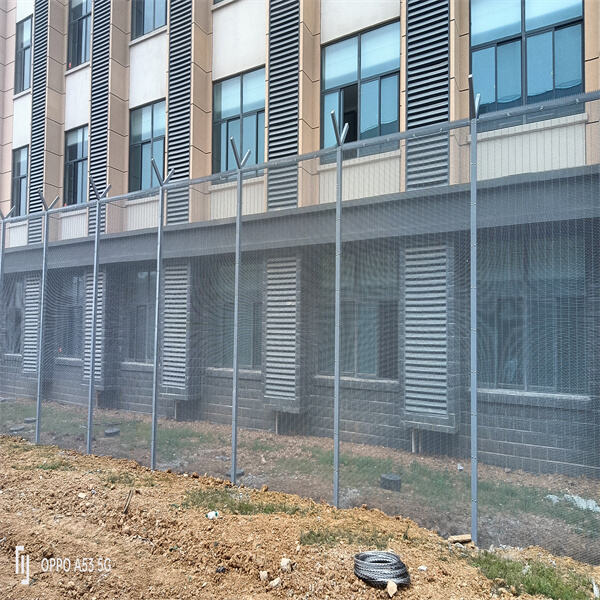

358 high security fence, also known as anti-climb fence, is a kind of superior high tensile and high security welded wire mesh fence. The fence name 358 comes from its panel with a mesh opening of 3" × 0.5" and a wire diameter of 8-gauge (approximate to 76.2 mm × 12.7 mm × 4 mm). It is deigned to be a robust, anti- climb and anti-cut barrier to provide high security protection. The mesh opening is so small, you can even put your finger on it, which makes it is almost impossible to be climbed and cut. Meanwhile, the 8-gauge wire is strong enough to form a rigid structure, which make it is extremely perfect to secure your property and realize effective access control. It is hugely flexible for a wide range of high security locations, including but not limited to, schools, industrial and commercial sites, police stations, prisons, government agencies, airports, railways and seaports, etc.

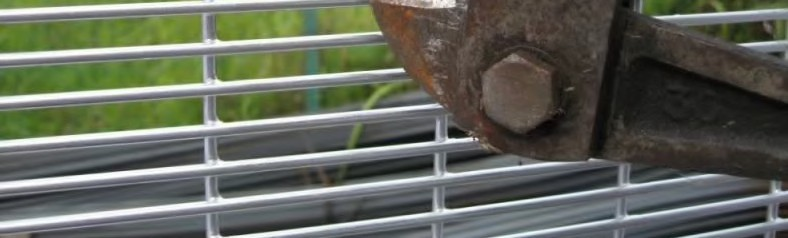

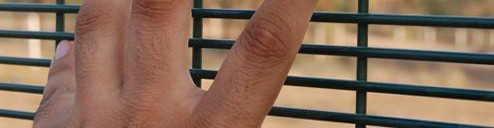

ANTI-CLIMB PERFORMANCEANTI-CUT PERFORMANCE

Category

· Panel Surface

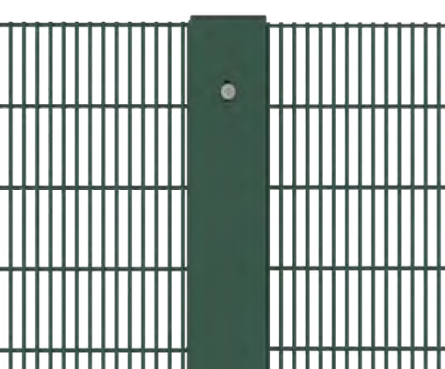

According to the shape of panel surface, our 358 high security fences can be divided into two types as shown below.

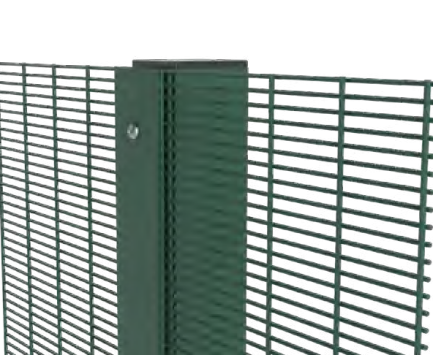

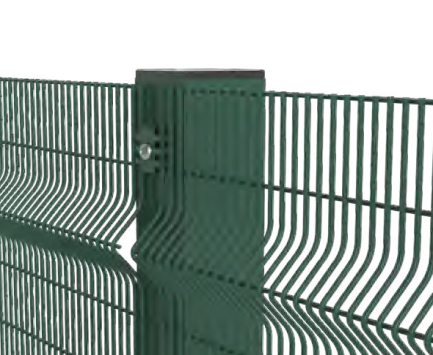

2D 358 high security fence3D 358 high security fence

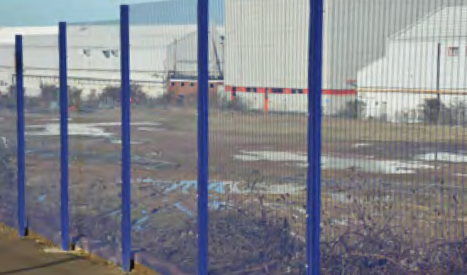

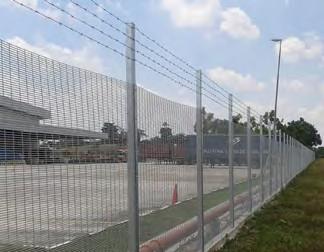

· Surface Treatment

According to the surface treatment, our 358 high security fence can be divided into two types as shown below.

GalvanizedPowder coated

· Mesh Opening Direction

According to the mesh opening direction, our high security fence can be divided into two types as shown below.

HORIZONTAL MESH OPENINGVERTICAL MESH OPENING

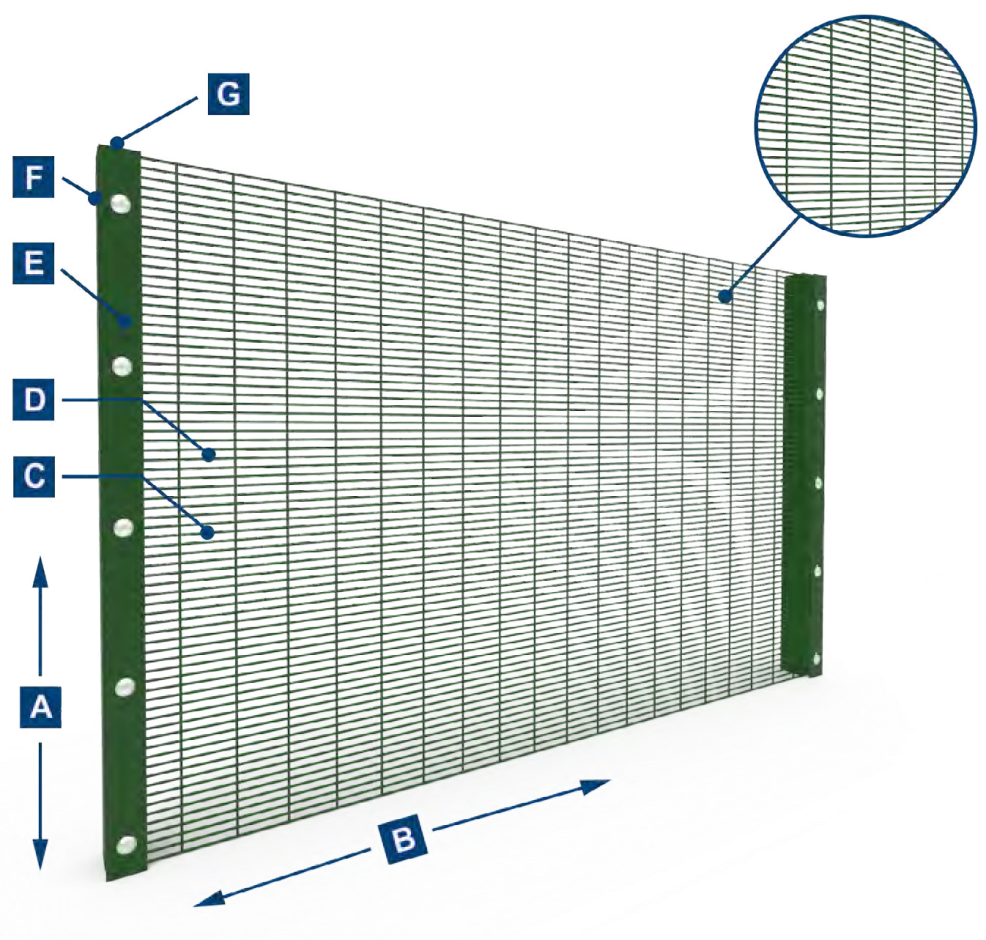

Specification

A Height: 1200–3500 mm
B Width: 2000–3100 mm
C Wire Diameter: 3.2 mm (10 gauge), 4.0 mm (8 gauge)
D Mesh Opening: 12.7 × 76.2 mm (0.5" × 3")
E Clamp: metal clamp/tension bar covered
F Post: square post (60 × 60 × 2.0/2.5/3.0 mm, 80 × 80 × 2.0/2.5/3.0 mm); rectangular post (40 × 60 × 2.0/2.5/3.0 mm, 40 × 80 × 2.0/2.5/3.0 mm, 60 × 80 × 2.0/2.5/3.0 mm, 80 × 100 × 2.0/2.5/3.0 mm)
G Post Cap: metal cap / anti-UV plastic cap
3510 high security fence is also available. 3510 high security fence has the same mesh opening as the 358 high security fence, the only difference is the wire diameter is 10-gauge instead of 8-gauge. All colors are available in Ral; Other materials and specifications are available upon request.

Components & Accessories

The main components and connection methods of our 358 high security fence are as shown below.

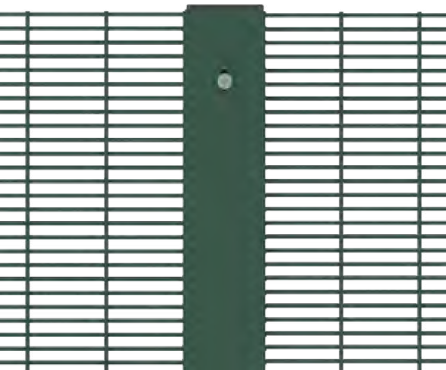

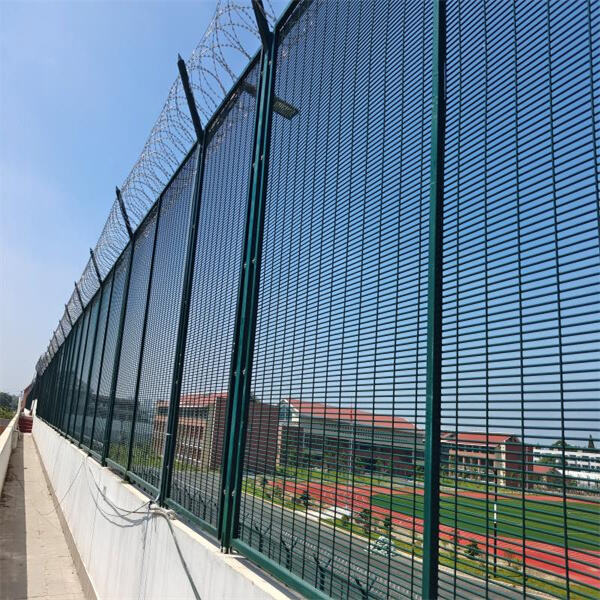

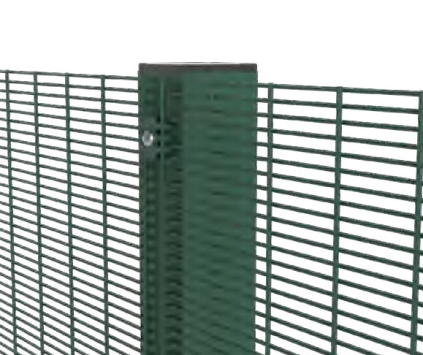

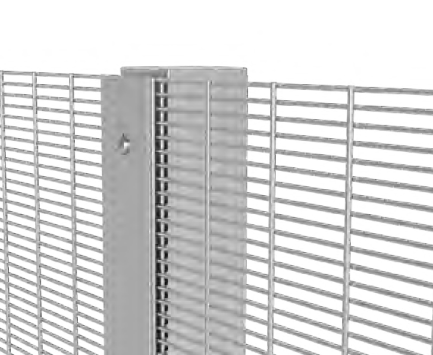

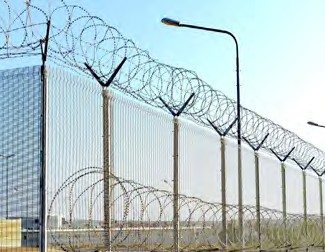

· Clamp bar connectionOptional Accessories: Barbed Wires & Razor Wires

BARBED WIRESRAZOR WIRES

Production Flow Chart Step 1 Raw materials (galvanized steel wires) Step 2 Steel wire straightening and cutting Step 3 Wire mesh welding Step 4 Wire mesh bending Step 5 Fence panel powder coating Step 6 Finished 358 high security fence panels

Production Flow Chart
Step 1 Raw materials (galvanized steel wires)	Step 2 Steel wire straightening and cutting	Step 3 Wire mesh welding	Step 4 Wire mesh bending	Step 5 Fence panel powder coating	Step 6 Finished 358 high security fence panels

Package & Delivery

PANEL PACKAGEPOST PACKAGEFENCE DELIVERYFENCE DELIVERY

· 358 High Security Fence Single Swing Gate

	Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
	Width	0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m
	Mesh Size	76.2 × 12.7 mm (3" × 0.5")
	Wire Diameter	3.2 mm, 4.0 mm
	Post (square)	60 × 60 mm, 80 × 80 mm, 100 × 100 mm
	Frame Tube	25 × 25 mm, 30 × 30 mm
	Surface Treatment	Hot dipped galvanized, powder coated

· Curvy Welded Fence Double Swing Gate

	Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
	Width	4.0 m, 4.8 m, 6.0 m, 10.0 m
	Mesh Size	76.2 × 12.7 mm (3" × 0.5")
	Wire Diameter	3.2 mm, 4.0 mm
	Post (square)	60 × 60 mm, 80 × 80 mm, 100 × 100 mm
	Frame Tube	20 × 20 mm, 25× 25 mm, 30 × 30 mm
	Surface Treatment	Hot dipped galvanized, powder coated

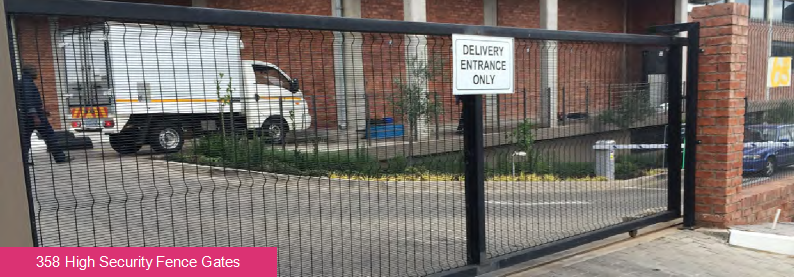

· Curvy Welded Fence Sliding Gate

	Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
	Width	4.0 m, 4.8 m, 6.0 m, 10.0 m
	Mesh Size	76.2 × 12.7 mm (3" × 0.5")
	Wire Diameter	3.2 mm, 4.0 mm
	Post (square)	60 × 60 mm, 80 × 80 mm, 100 × 100 mm
	Frame Tube	25 × 25 mm, 30 × 30 mm
	Surface Treatment	Hot dipped galvanized, powder coated

Features & Application

Features

Application

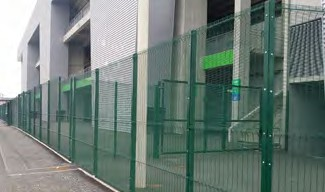

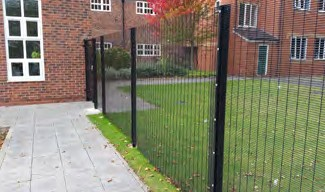

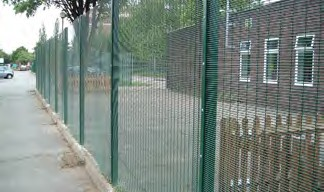

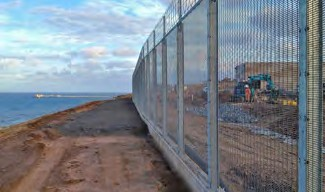

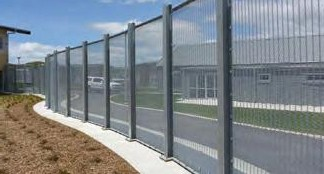

Our 358 high security fence is hugely flexible for a wide range of high security locations, including but not limited to, schools, industrial and commercial sites, police stations, prisons, government agencies, airports, railways and seaports, etc.
