Corral Panels

Product Description

Corral Panels

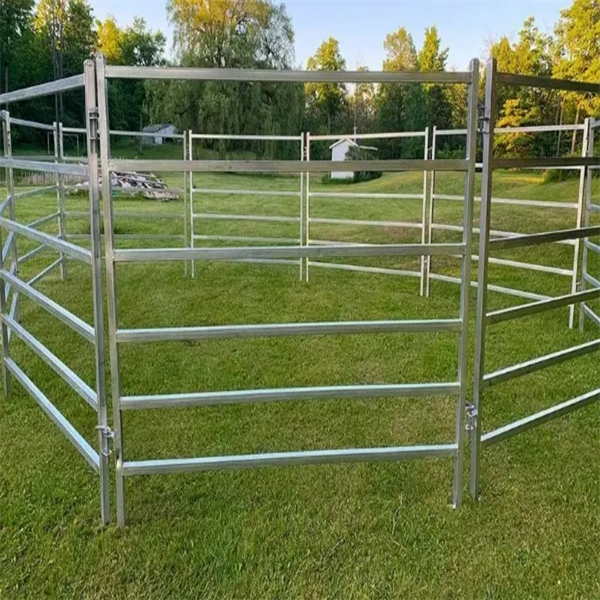

Corral panel, also known as livestock panel, is a kind of welded steel tube fence for cattle, horse, sheep and other livestock.

Generally, it is made of square, oval or round tubes and have high strength and solid structure.

It can sit directly on the ground for temporary or permanent fencing to keep cattle or sheep safe and free from wild animal attacks.

We have cattle & sheep panels of different heights, lengths and number of rails for you to choose from.

● Rail type

According to the rail type, our corral panels can be divided into three types as shown below.

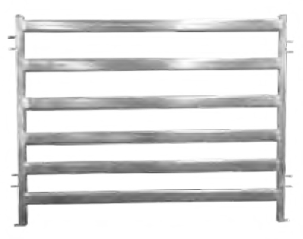

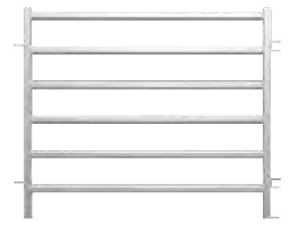

round rail stylesquare rail styleoval rail with square post stylePowder coating

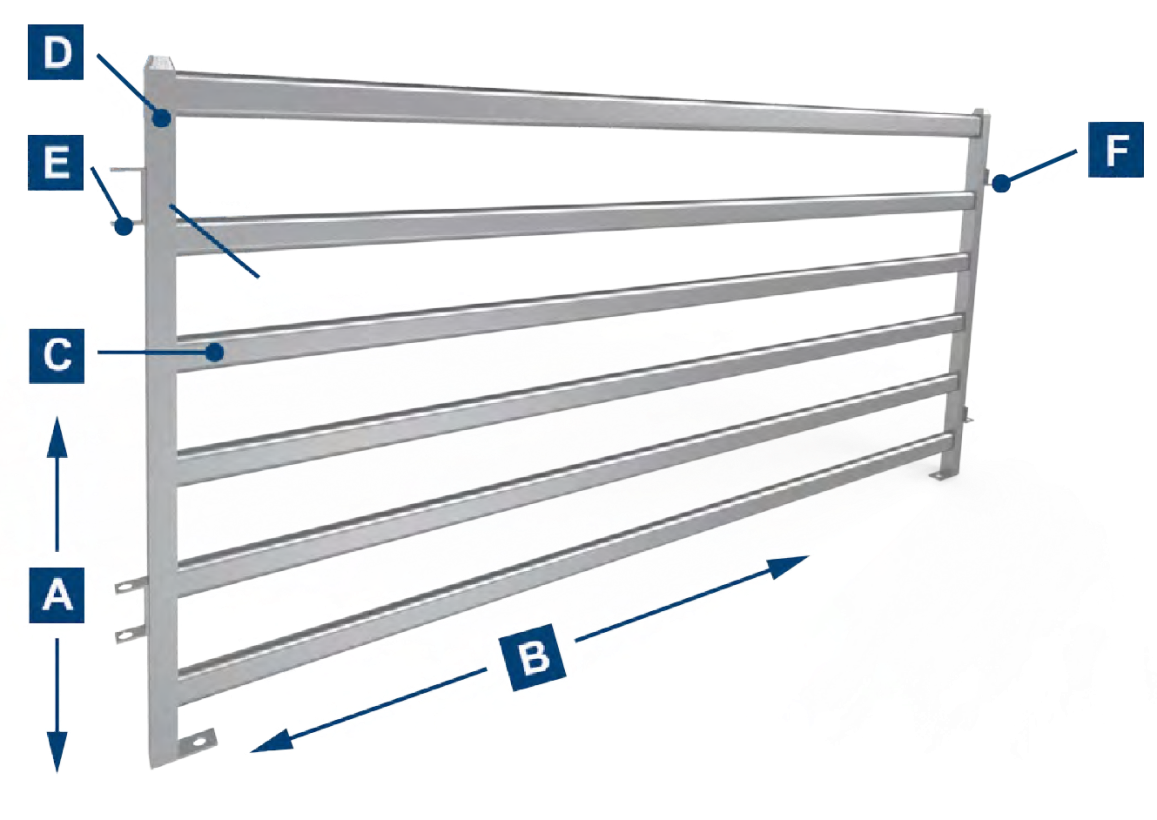

Specification

A Height: 950 mm, 1000 mm, 1800 mm
B Width: 2100 mm, 2900 mm
C Horizontal Rail: round rail (32 mm OD, 42 mm OD); square rail (40 × 40 mm, 50 × 50 mm); oval rail (30 × 60 mm, 40 × 80 mm, 42 × 115 mm, 50 × 70 mm)
D Vertical Pipe: round pipe (32 mm OD, 42 mm OD); square pipe (40 × 40 mm, 50 × 50 mm)
E U lug
F L lug

Square Edge Fence GateArc Edge Fence Gate Type 1Arc Edge Fence Gate Type 2

● Specification of Cattle Panels

Round Rail Style	Height × Length	1.8 m × 2.1 m, etc.
	Horizontal rails	32 mm OD, 42 mm OD (6 round rails), etc.
	Vertical pipe	32 mm OD, 42 mm OD, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	4 lugs, 2 rain caps are welded on panels. 2 pins are included in one panel.
Square Rail Style	Height × Length	1.8 m × 2.1 m, etc.
	Horizontal rails	40 × 40 mm, 50 × 50 mm (6 square rails), etc.
	Vertical pipe	40 × 40 mm, 50 × 50 mm, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Oval Rail with Square Post Style	Height × Length	1.8 m × 2.1 m
	Horizontal rails	30 × 60 mm, 40 × 80 mm, 42 × 115 mm, 50 × 100 mm (6 oval rails), etc.
	Vertical pipe	40 × 40 mm, 50 × 50 mm, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.

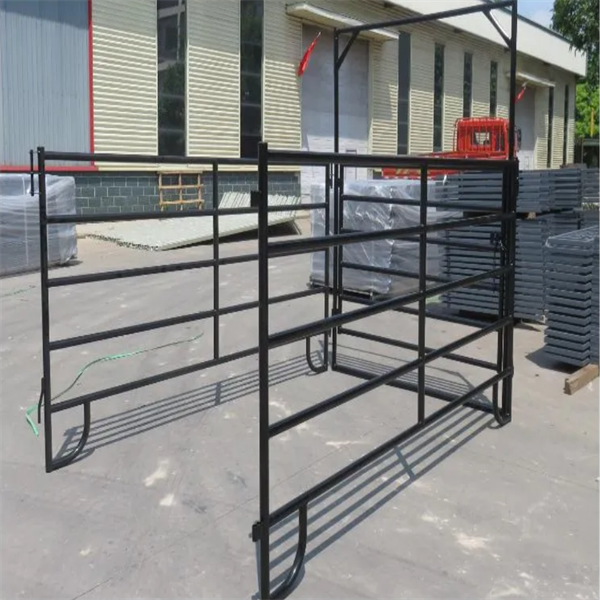

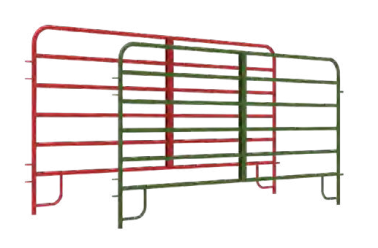

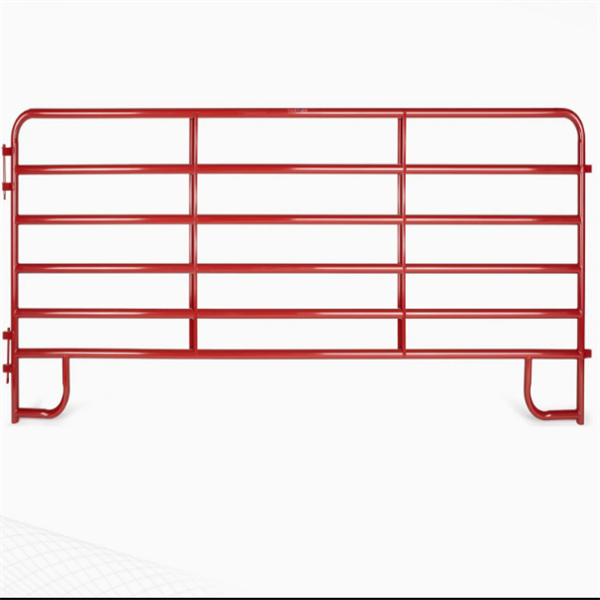

Round tube with bent bottom base	Height	5 ft, 6 ft, 2.0 m ,etc.
	Width	9 ft, 10 ft, 12 ft, etc.
	Frame & Rail	32 mm, 42 mm, etc.
	Round Tube
	Thickness	1.6 mm, 2.0 mm, etc.
	Accessories	Welded parts: U lugs, rain caps, bases, pins
	Surface treatment	Hot dipped galvanized, galvanized + powder coated

> Other materials and specifications are available upon request.

● Specification of Sheep Panels

Round Rail Style	Height × Length	0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m, etc.
	Horizontal rails	32 mm OD, 42 mm OD (5 or 6 round rails), etc.
	Vertical pipe	32 mm OD, 42 mm OD, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	4 lugs, 2 rain caps are welded on panels. 2 pins are included in one panel.
Square Rail Style	Height × Length	0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m, etc.
	Horizontal rails	40 × 40 mm, 50 × 50 mm (5 or 6 square rails), etc.
	Vertical pipe	40 × 40 mm, 50 × 50 mm, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Oval Rail with Square Post Style	Height × Length	0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m, etc.
	Horizontal rails	30 × 60 mm, 40 × 80 mm, 42 × 115 mm, 30 × 112 mm (5 or 6 oval rails), etc.
	Vertical pipe	40 × 40 mm, 50 × 50 mm, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.

> Other materials and specifications are available upon request.

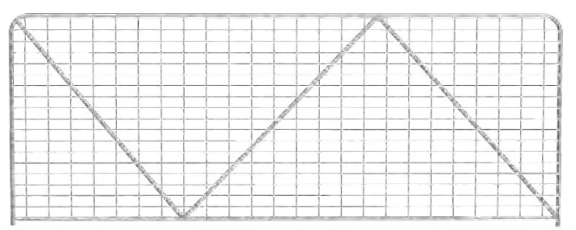

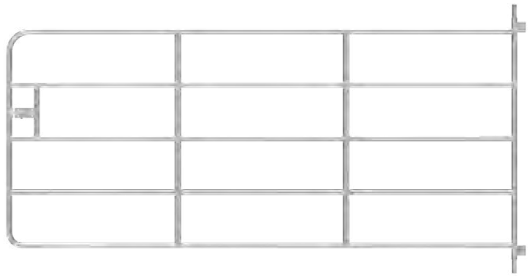

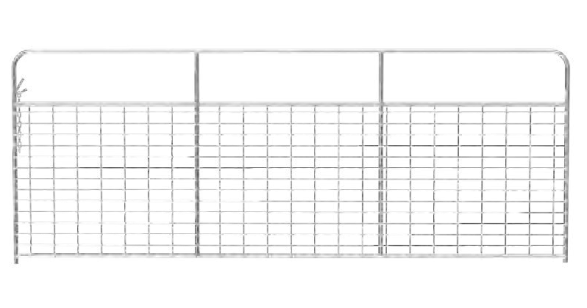

Corral Gates Type

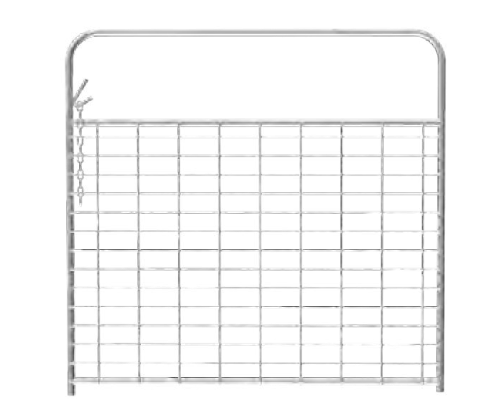

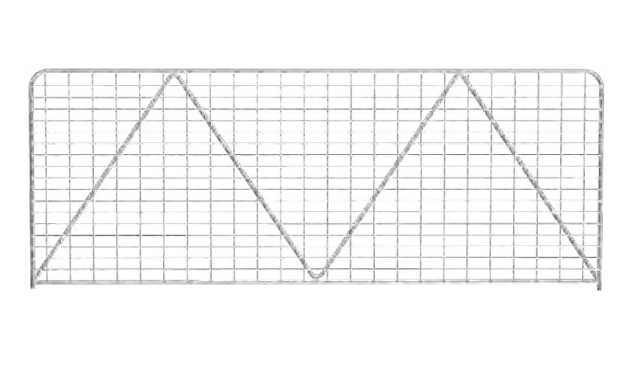

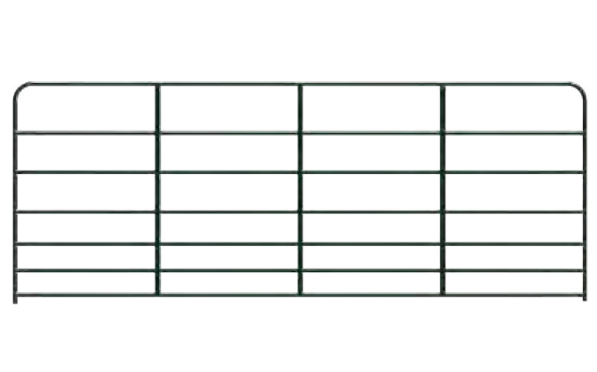

round rail style – Type 1round rail style – Type 2round rail style – Type 3

round rail style – Type 4round rail style – Type 5round rail style – Type 6

Features & Application

Features

● Portable:
It can be removed easily and can be transported to everywhere you want.

● Versatile:
A variety of specifications for cow, cattle or sheep at different grow stages.

● Convenience:
Easy & quick installation and removal.

● Sturdy:
The high quality steel tube offers great strength and creates a sturdy structure without deformation.

● Comfort:
It creates enough space allowing animals walk freely and making them feel safe, relaxed and ease.

● Durable:
High quality raw materials (galvanized steel tube) ensures its great corrosion, rust and weather resistance performances and extends its service life.

Application

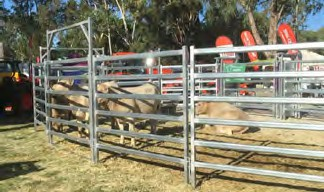

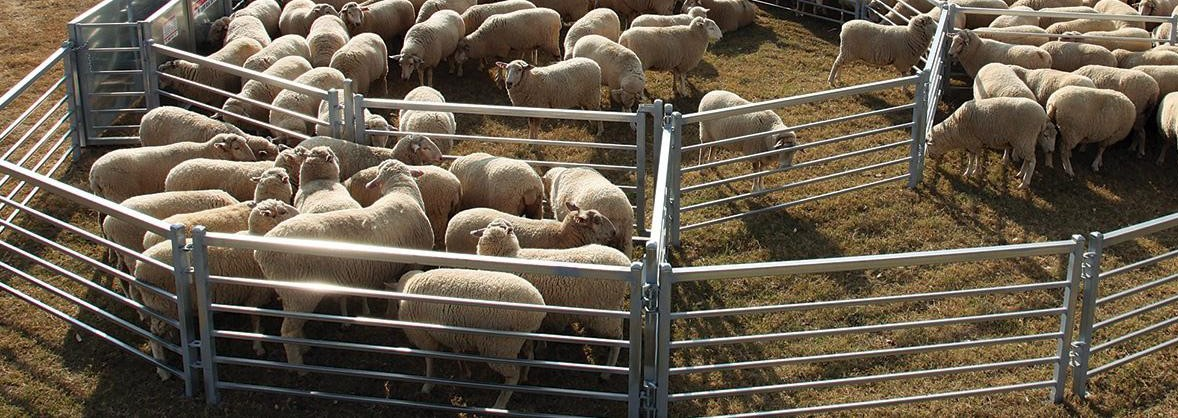

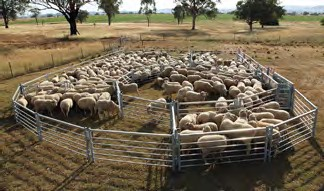

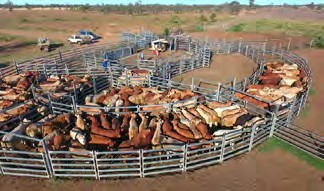

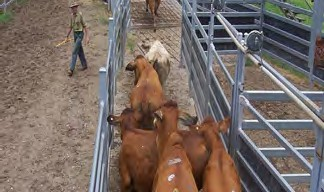

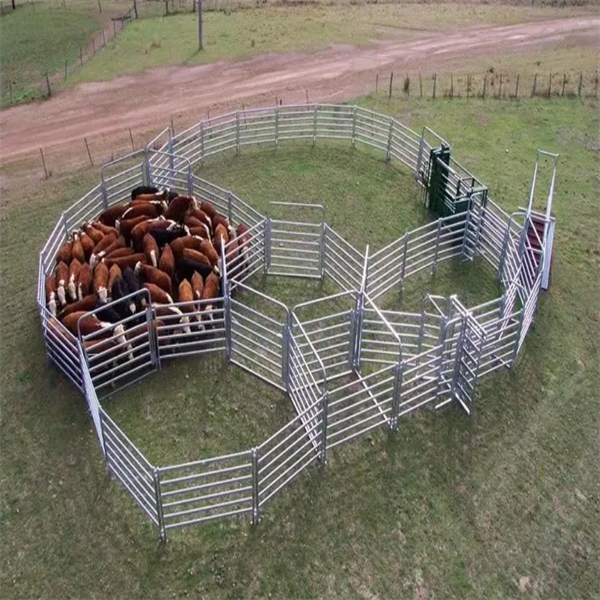

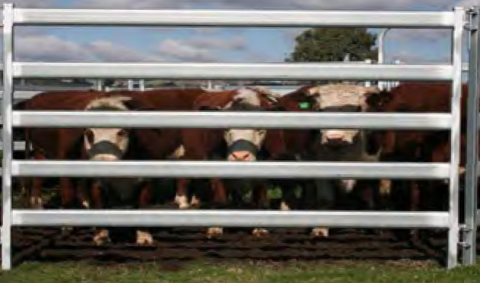

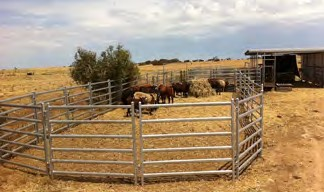

Cattle panels & sheep panels are widely used in farms, pastures and other places for temporary or permanent security fence for cattle, sheep, horses and other large animals.
