Crowd Control Barrier

Product Description

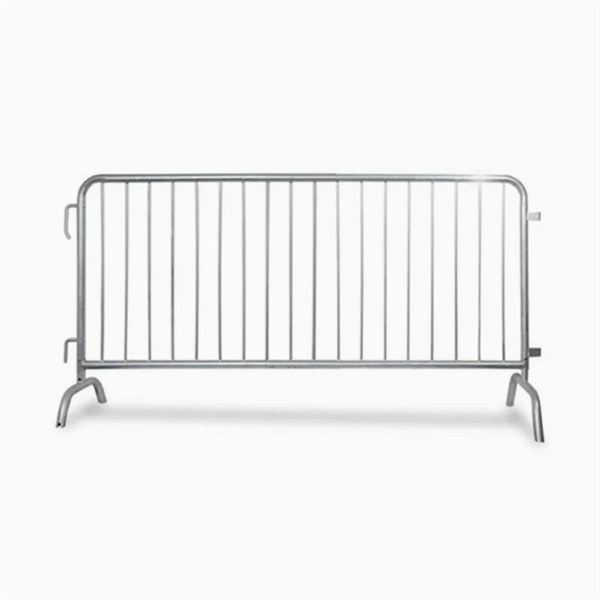

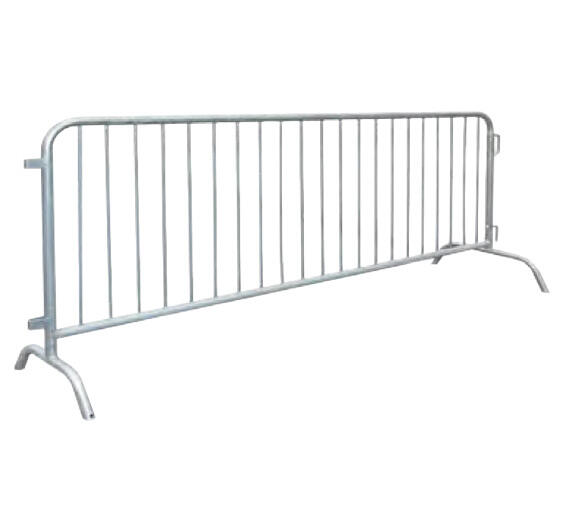

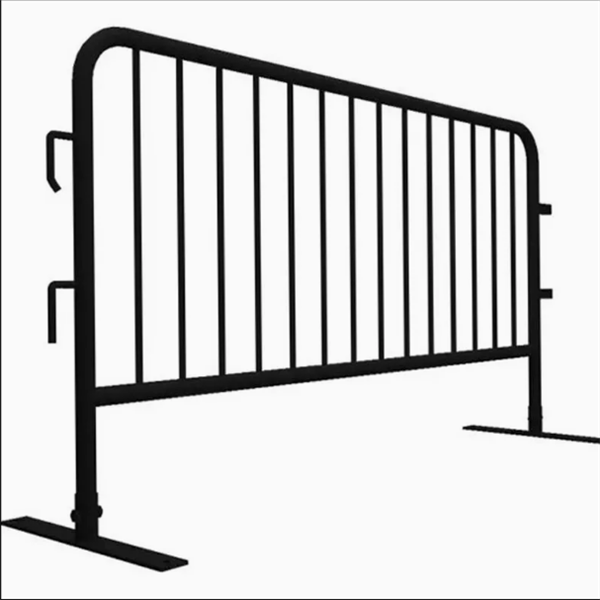

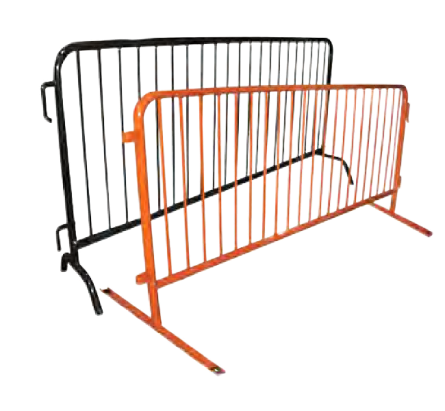

Crowd Control Barrier

Crowd control barrier, also known as pedestrian barrier or crowd control barricade, is a perfect choice for guiding and restricting crowd and traffic flows to keep people and vehicles from entering restricted areas.

It is constructed of superior steel pipes and is hand welded for high strength. It is also provided with an interlocking design, which makes it can be easily hooked to another and create a long, continuous line of protection.

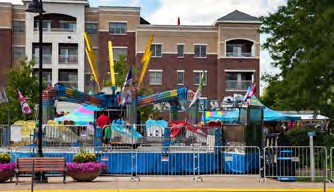

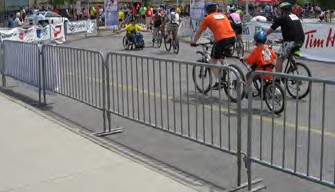

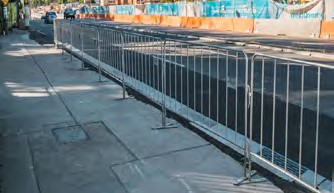

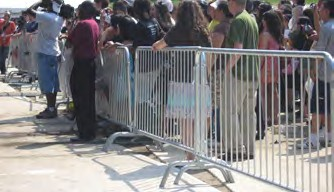

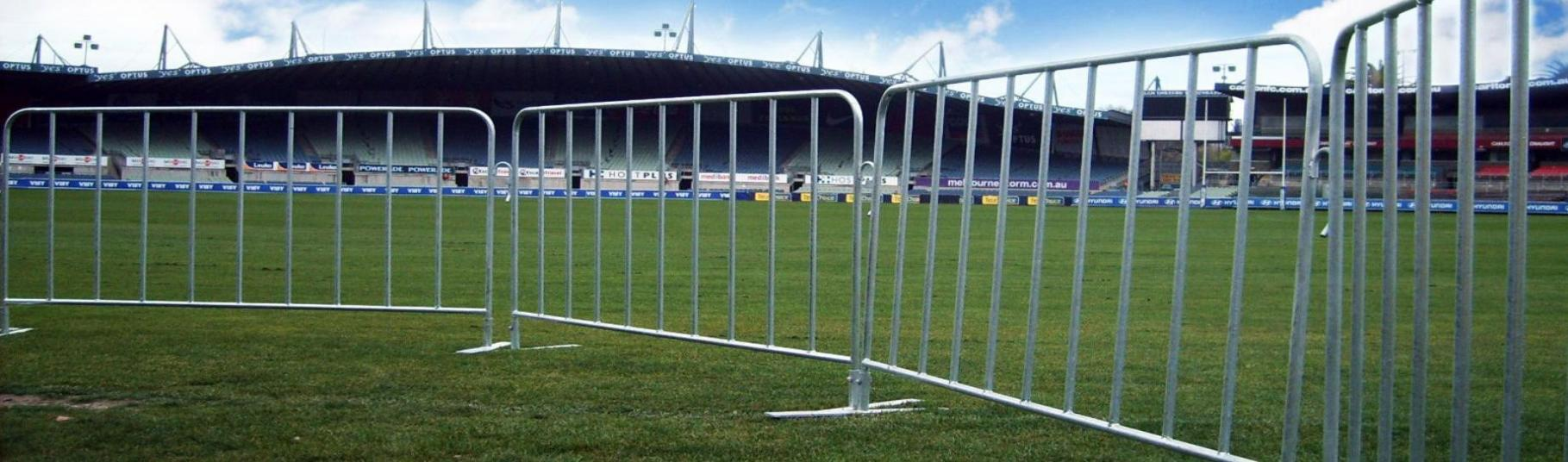

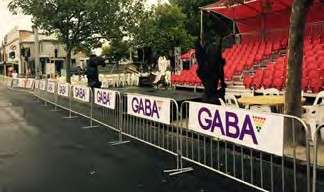

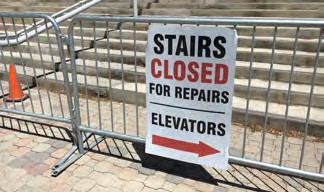

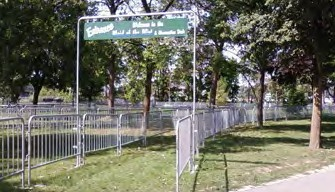

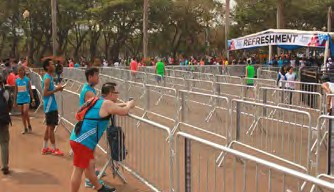

Crowd control barrier is widely used in construction sites and many public events, including but not limited to, sports events, concerts, parades, political rallies, demonstrations and outdoor festivals.

● Surface Treatment

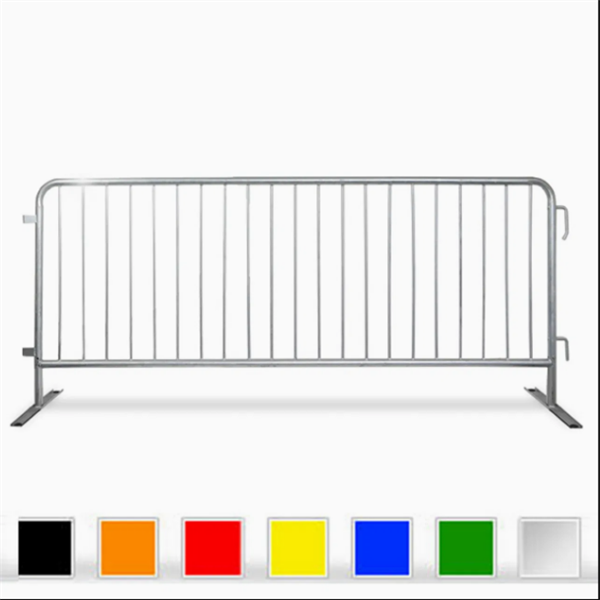

We have both galvanized and powder coating crowd control barriers for your choice. All RAL colors are available.

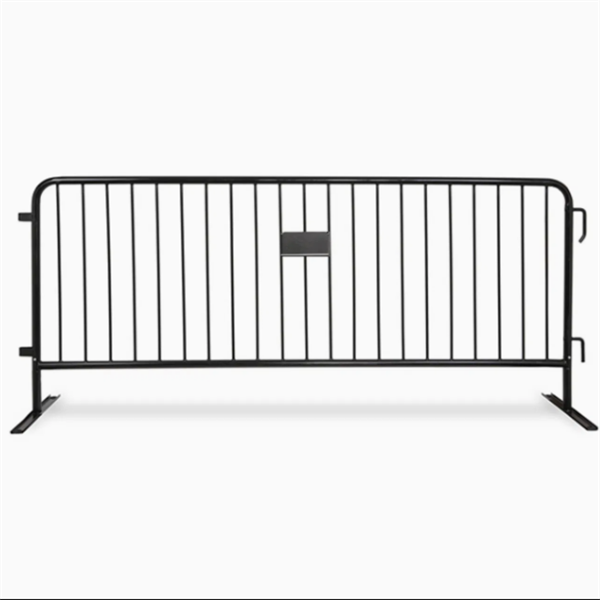

Powder coatingGalvanized

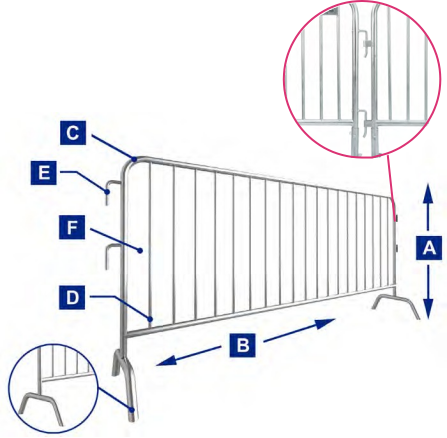

Specification

A Height: 1.1 m, 1.25 m, 1.5 m
B Width: 2.0 m, 2.1 m, 2.2 m, 2.4 m, 2.5 m
C Frame: 32 × 1.2/1.5/2.0 mm, 38 × 1.2/1.5/2.0 mm, 42 × 1.2/1.5/2.0 mm, 48 × 1.2/1.5/2.0 mm
D Inner pipe: 12 × 0.7 mm, 14 × 1.0 mm, 16 × 1.0 mm, 20 × 1.2 mm, 25 × 1.2 mm
E Connection: metal hook
F Spacing: 60 mm, 100 mm, 120 mm, 150 mm, 200 mm
Galvanized and powder coating treatment; All colors are available in Ral; Other specifications are available upon request

Components & Accessories

The main components of the crowd control panel are fence panels and bases. We have three kind of bases. Of which, fixed bases are welded to the bottom of the fence panel directly while the flat base and bridge base are bolted to the panel frame. Their specific features are as shown below.

● Base Types

Fixed baseFlat baseBridge base

● Optional Accessories

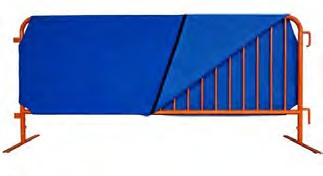

SHADE CLOTHCUSTOMIZED LOGOSSIGNBOARDS

Production Flow Chart

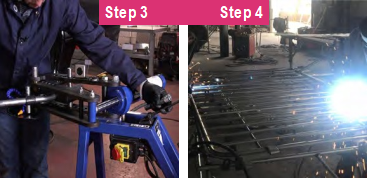

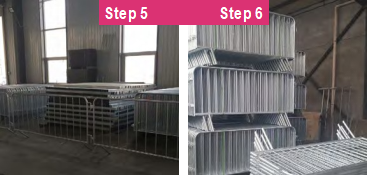

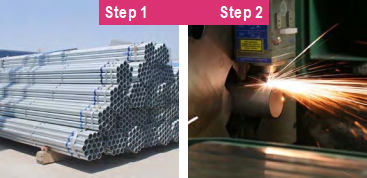

Step 1 Raw materials (galvanized steel pipes)	Step 2 Pipe cutting	Step 3 Pipe bending	Step 4 Crowd control barrier panel welding	Step 5 Finished crowd control barrier panels	Step 6 Crowd control barrier panel storage

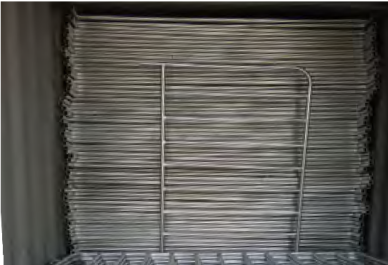

Package & Delivery

CROWD CONTROL BARRIER PACKAGECROWD CONTROL BARRIER DELIVERYCROWD CONTROL BARRIER DELIVERY

Features & Application

Features

● Superior steel pipes:
All crowd control barriers are made of superior steel pipes for high strength and a long service life.

● Full welding design:
Full welding design is employed to make the barrier strong and durable.

● Excellent surface treatment:
Galvanized or power coated surface treatment makes it corrosion and rust resistance and work perfectly in harsh environments.

● Detachable bases:
Crowd control barriers are provided with detachable bases, easy to handle and transport.

● Interlocking system:
It adopts an interlocking system, which makes two panel are connected easily and firmly.

● Various base types:
A variety of base types are available for you to choose from and are perfect for all ground surfaces.
