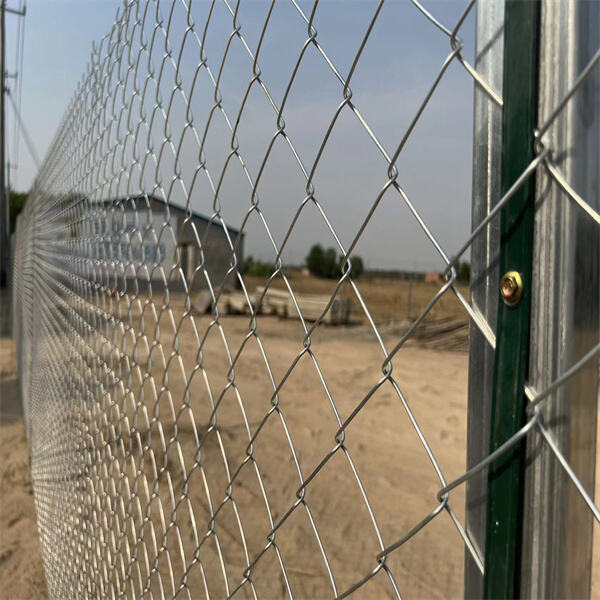

Galvanized Chain Link Fence

Chain Link Fence

Chain link fence, also known as cyclone fence, hurricane fence or diamond mesh fence, is a type of woven fence usually made of galvanized or PVC coated steel wire.

The wires are woven together to form beautiful diamond patterns. It offers a cost- effective solution for residential and commercial applications.

Typically, the shorter heights are commonly selected for residential uses while the taller heights are most often for commercial uses to provide more security.

Besides, it is a great option for road, railway, airport fencing, equipment and facilities protection, pet and small animal raising as well as zoo fencing.

Raw Materials

We have both galvanized and PVC coated chain link fence for your choice. All RAL colors are available.

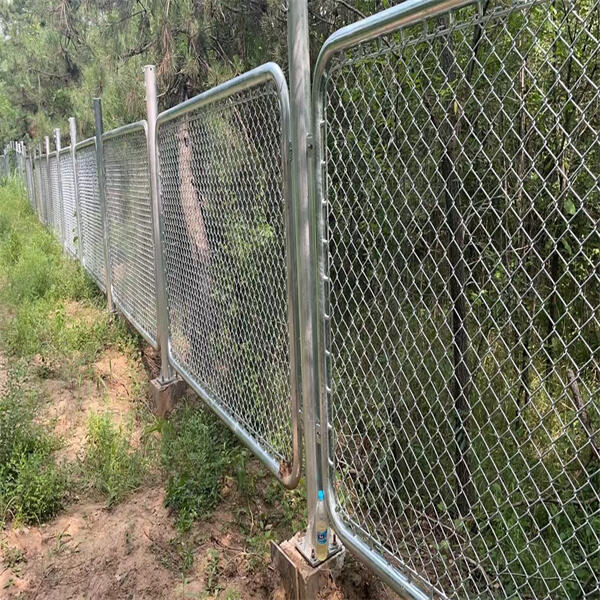

Galvanized chain link fence fabric

PVC coated chain link fence fabric

Selvages

We have both galvanized and PVC coated chain link fence for your choice. All RAL colors are available.

Barbed-barbed

Knuckle-knuckle

Knuckle-barbed

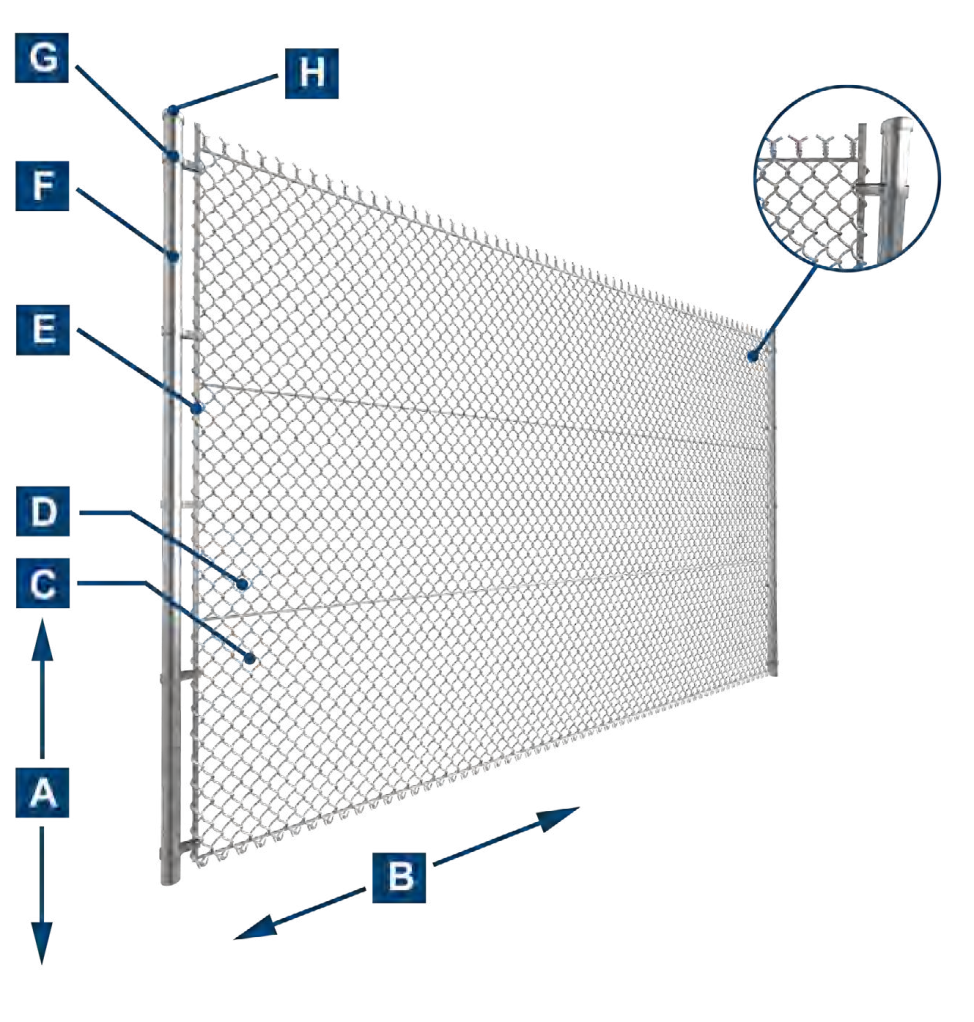

Specification

E Tension Bar: 20mm*4mm, 20mm*5mm
F Post: 48mm, 60mm, 75mm, 89mm
G Clamp:  metal clamp
H Post Cap:  metal rain cap / anti-UV PP cap
All colors are available in Ral; Other materials and specifications are available upon request.

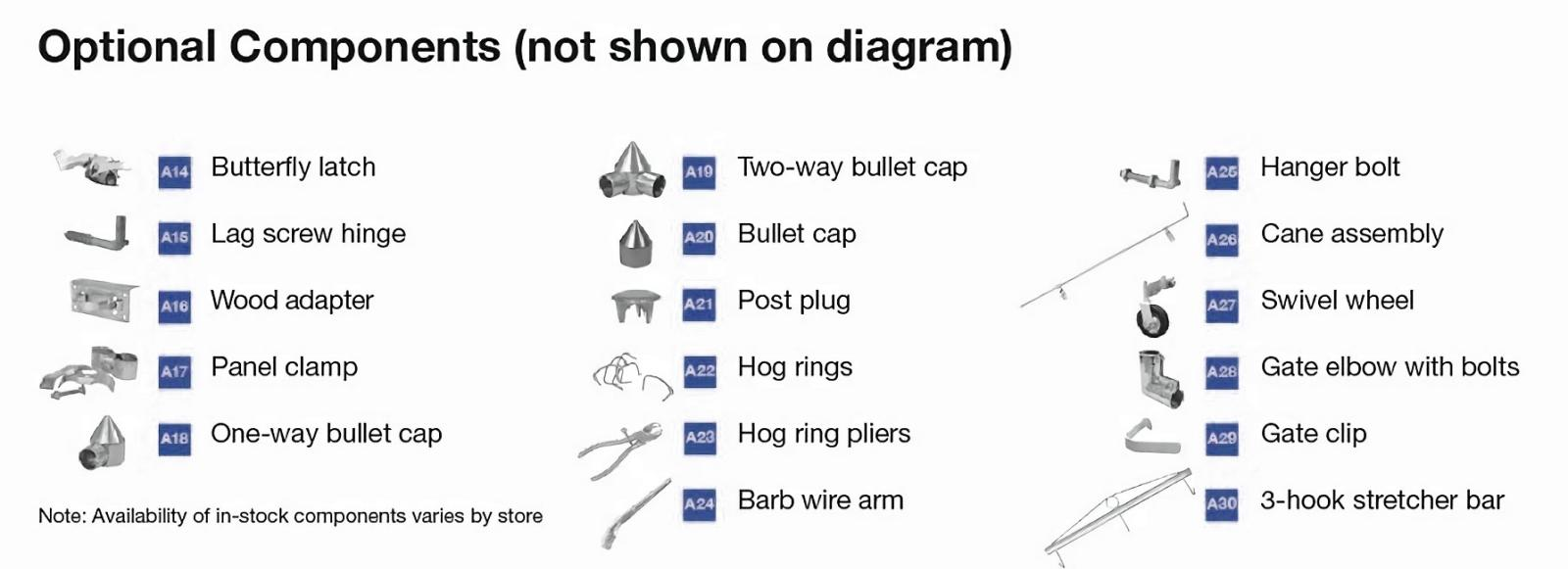

Components & Accessories

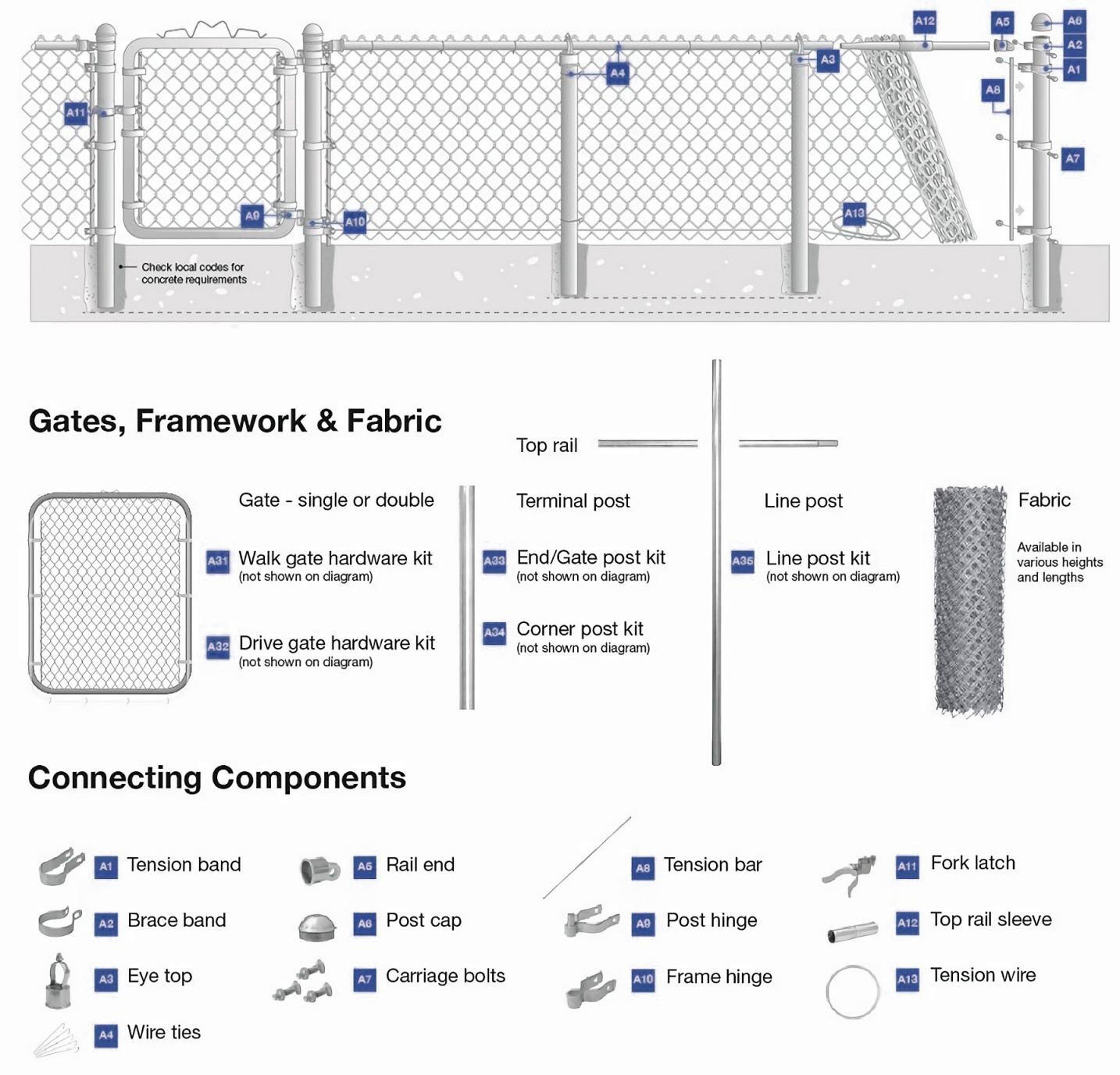

Our chain link components include gates, framework and chain link fabric as shown below. In addition, a variety of accessories are available to help you connect and secure your chain link fence properly and firmly.

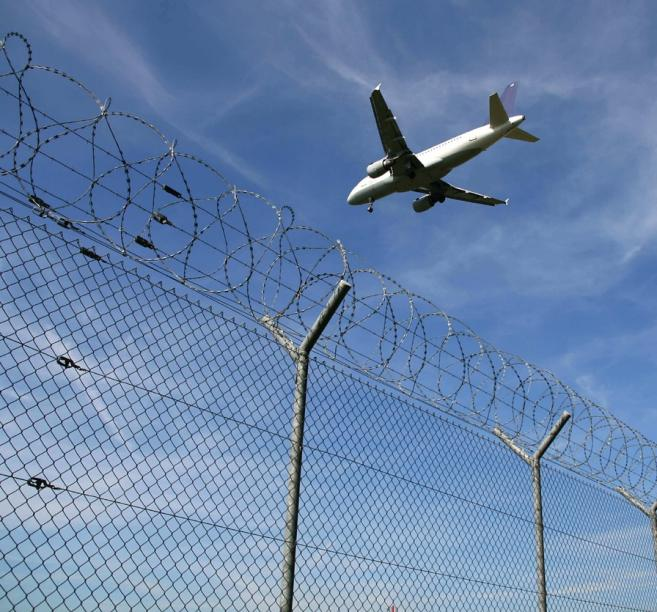

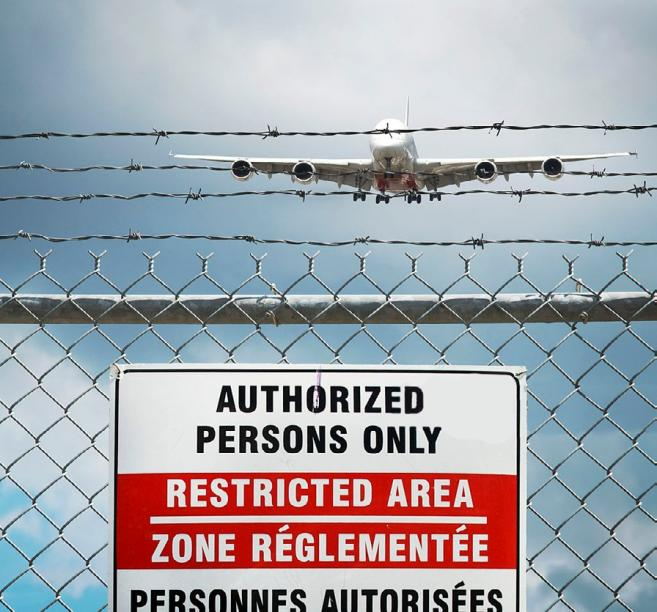

CHAIN LINK FENCE WITH BARBED WIRES FOR AIRPORTSCHAIN LINK FENCE WITH RAZOR WIRES FOR AIRPORTS

Chain Link Fence Gate

· Chain Link Fence Single Swing Gate

	Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
	Width	0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m
	Mesh Size	50 × 50 mm, 60 × 60 mm, 70 × 70 mm
	Wire Diameter	3.0–5.0 mm
	Post (round)	48 mm OD, 60 mm OD
	Frame Tube	32 mm OD, 38 mm OD, etc.

· Chain link fence double swing gate

	Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
	Width	4.0 m, 4.8 m, 6.0 m, 10.0 m
	Mesh Size	50 × 50 mm, 60 × 60 mm, 80 × 80 mm
	Wire Diameter	3.0–6.0 mm
	Post (round)	48 mm OD, 60 mm OD
	Frame Tube	32 mm OD, 38 mm OD, etc.

· Chain Link Fence Sliding Gate

	Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
	Width	4.0 m, 4.8 m, 6.0 m, 10.0 m
	Mesh Size	50 × 50 mm, 60 × 60 mm, 70 × 70 mm
	Wire Diameter	3.0–5.0 mm
	Post (round)	48 mm OD, 60 mm OD
	Frame Tube	32 mm OD, 38 mm OD, etc.

Production Flow Chart

· Galvanized chain link fence

Step 1 Raw materials (galvanized steel wire)	Step 2 Chain link fabric production (galvanized)	Step 3 Finished chain link fence (galvanized)

· PVC coated chain link fence

Step 1 Raw materials (PVC coated steel wire)	Step 2 Chain link fabric production (PVC coated)	Step 3 Finished chain link fence (galvanized)

Features & Application

Features

Security	Privacy & visibility	Affordability
It can create an enclosure to prevent pets or kids out of the yard and protect their security.	It can protect your privacy while maintaining a certain range of visibility.	Its relatively inexpensive price is really a budge-friendly choice for all users.
Durability	Versatility	Less maintenance
High quality raw materials ensure its great corrosion, rust and weather resistance performances.	A variety of specifications and accessories for you to choose from to meet all your demands	Its high strength, solid structure and corrosion and weather resistance performances make it strong enough and require less maintenance.

Application

It is widely used for residential and commercial applications to create a secure barrier and provide both visibility and security. Besides, it is a great option for road, railway and airport fencing, equipment and facilities protection, pet and small animal raising as well as zoo fencing.

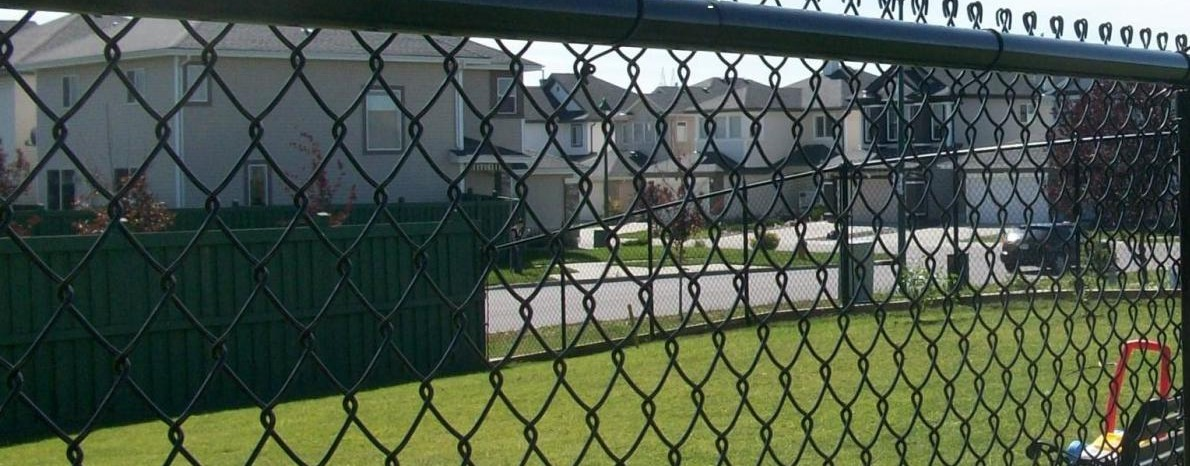

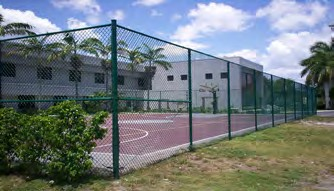

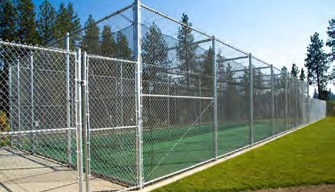

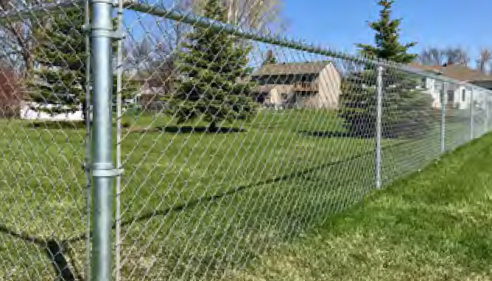

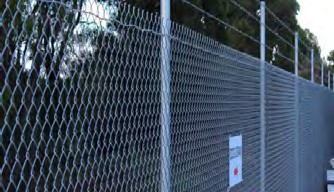

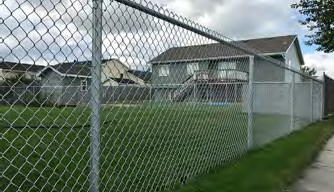

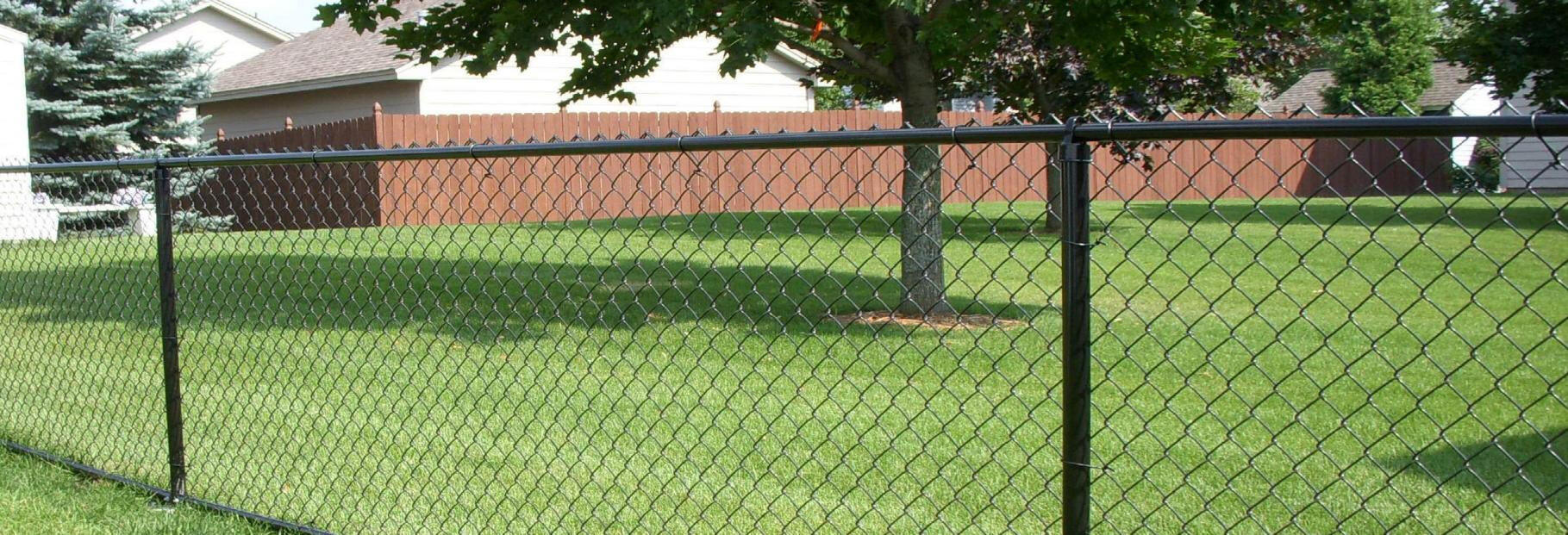

SPORTS FIELD	GARDENS	RESIDENTIAL ENCLOSURE

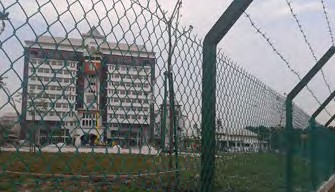

COMMERCIAL BUILDINGS	FOREST PROTECTION	PLAYGROUND
