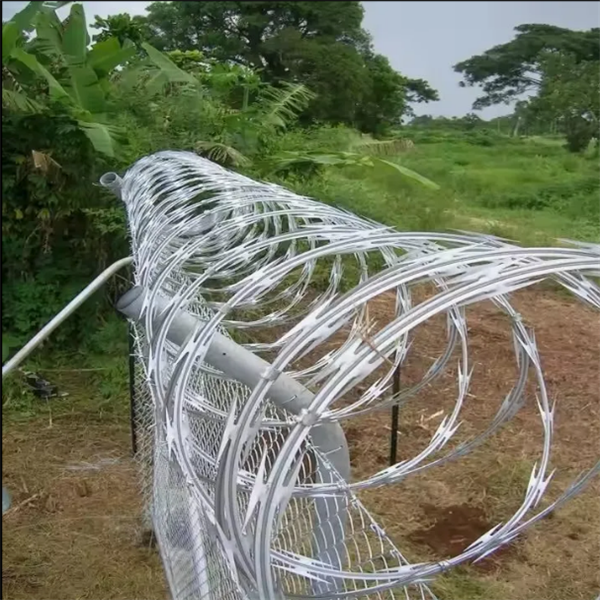

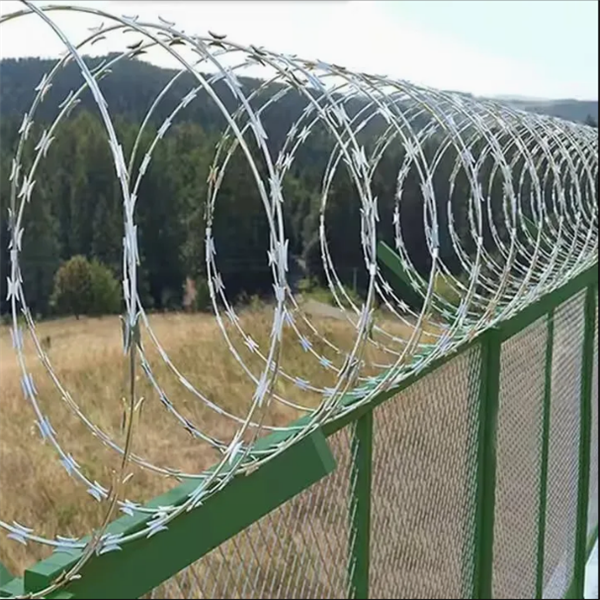

Razor wire also called concertina razor wire, as an upgraded security products of traditional barbed wire, has enhanced level of security and safety. It can be used individually along the wall or the top of the buildings to form a certain obstacles against intruders. It is also popularly used along the top of the metal fences offering strengthened barriers with sharp blades and barbs.
Concertina Razor Wire
Razor wire also called concertina razor wire, as an upgraded security products of traditional barbed wire, has enhanced level of security and safety. It can be used individually along the wall or the top of the buildings to form a certain obstacles against intruders. It is also popularly used along the top of the metal fences offering strengthened barriers with sharp blades and barbs.Razor wire is made by hot-dipped galvanized blade or stainless steel blade, high tensile strength core wire( steel wire with 1200mpa tensile strength or stainless steel wire).
Specification
● Specifications of Razor wire
| The Coil Diameter | No. of loops | Length Per Coil | Razor Wire Types | Notes |
| 450 mm | 33 | 7–8 m | CBT-60.65 | single coil |
| 500 mm | 56 | 12–13 m | CBT-60.65 | single coil |
| 700 mm | 56 | 13–14 m | CBT-60.65 | single coil |
| 960 mm | 56 | 14–15 m | CBT-60.65 | single coil |
| 450 mm | 56 | 8–9 m(3 clips) | BTO-10.12.18.22.28.30 | cross type |
| 500 mm | 56 | 9–10 m (3 clips) | BTO-10.12.18.22.28.30 | cross type |
| 600 mm | 56 | 10–11 m (3 clips) | BTO-10.12.18.22.28.30 | cross type |
| 600 mm | 56 | 8–10 m (5 clips) | BTO-10.12.18.22.28.30 | cross type |
| 700 mm | 56 | 8–10 m (5 clips) | BTO-10.12.18.22.28.30 | cross type |
| 800 mm | 56 | 11–13 m (5 clips) | BTO-10.12.18.22.28.30 | cross type |
| 900 mm | 56 | 12–14 m (5 clips) | BTO-10.12.18.22.28.30 | cross type |
| 960 mm | 56 | 13–15 m (5 clips) | BTO-10.12.18.22.28.30 | cross type |
● Razor wire type
| Item | Blade Style | Thickness (mm) | Wire Dia. (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO-12 |
|
0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 |
 |
0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 |  |
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 |
|
0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
| BTO-30 |  |
0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 |  |
0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 |  |
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
