Twin Wire Fence

Product Description

Double Wire Fence

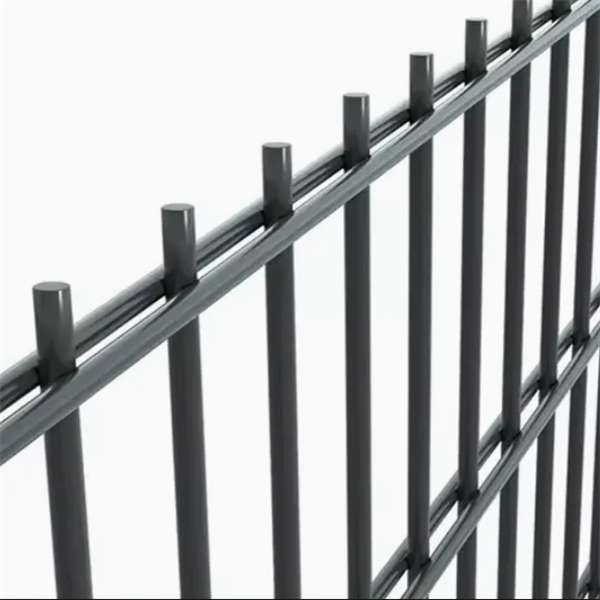

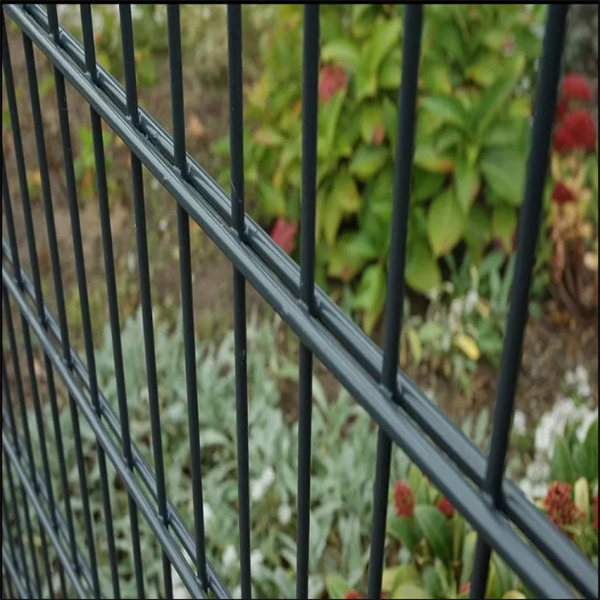

Double wire fence, also known as twin wire fence, is a kind of specially designed welded wire fence with double horizontal wires welded to single vertical wire.

Its unique structure makes it stronger and more durable than single wire fence.

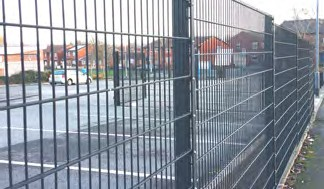

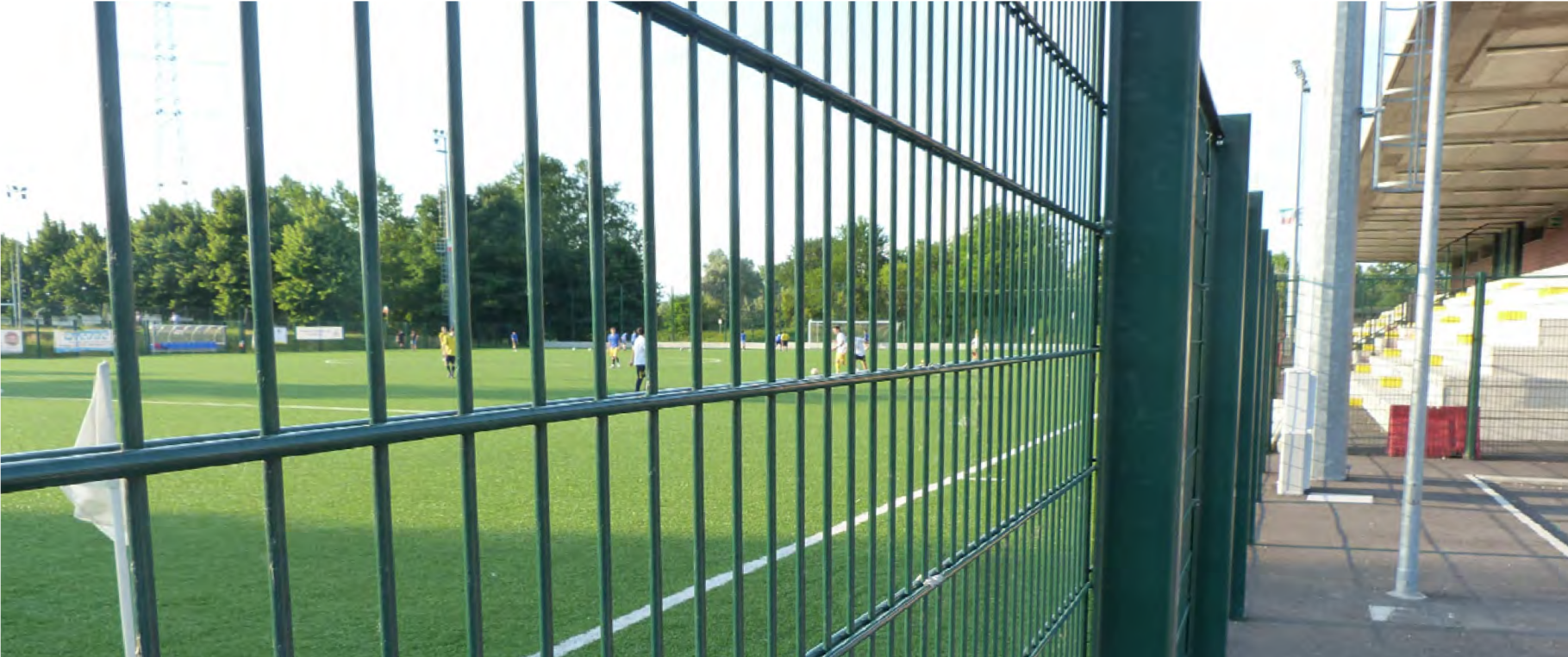

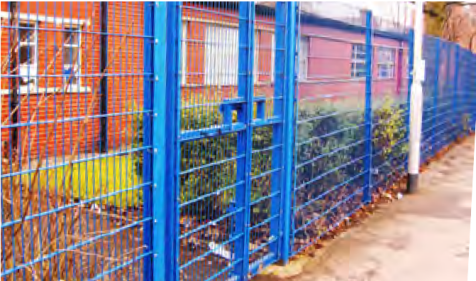

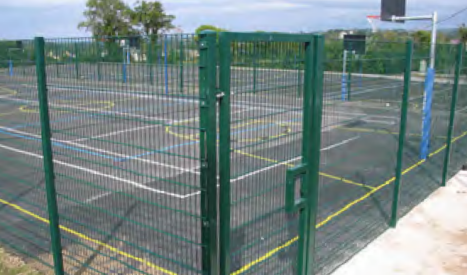

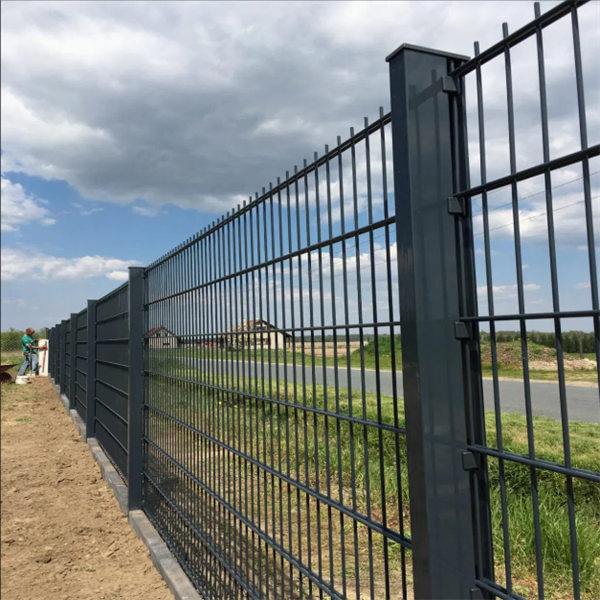

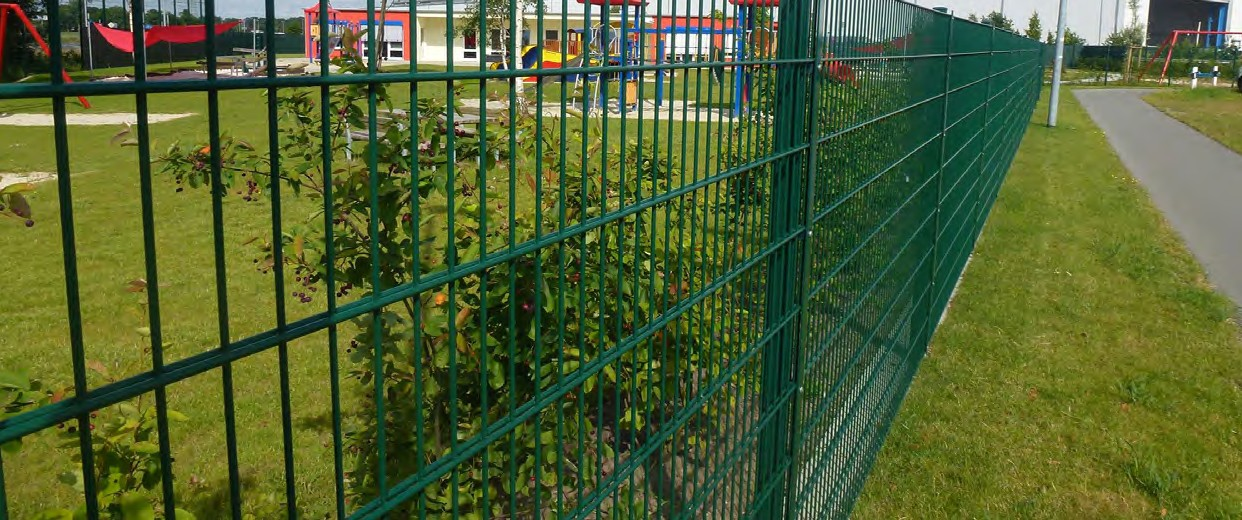

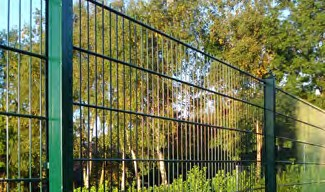

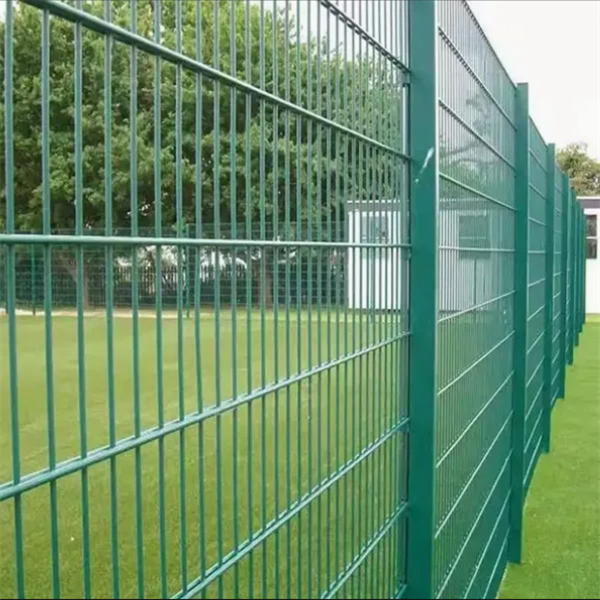

Our double wire fence is made of high quality carbon steel wires with a diameter of 6/5/6 mm or 8/6/8 mm. Typically, our double wire fence cannot come with folds because of its vertical wire is too strong for bending. Besides, galvanized or powder coating treatment gives the double wire fence excellent corrosion and rust resistance performance and a long service life. Double wire fence is very popular in European markets and is widely used in various residential, commercial and industrial applications, including but not limited to, playgrounds, schools, communities, gardens, parks, etc.

· Surface Treatment
According to the shape of its top edges, our double wire fence can be divided into two types as shown below.· Top Edge
According to its surface treatment, our double wire fence can be divided into two types as shown below.

GalvanizedPowder coatingFlat topArch top

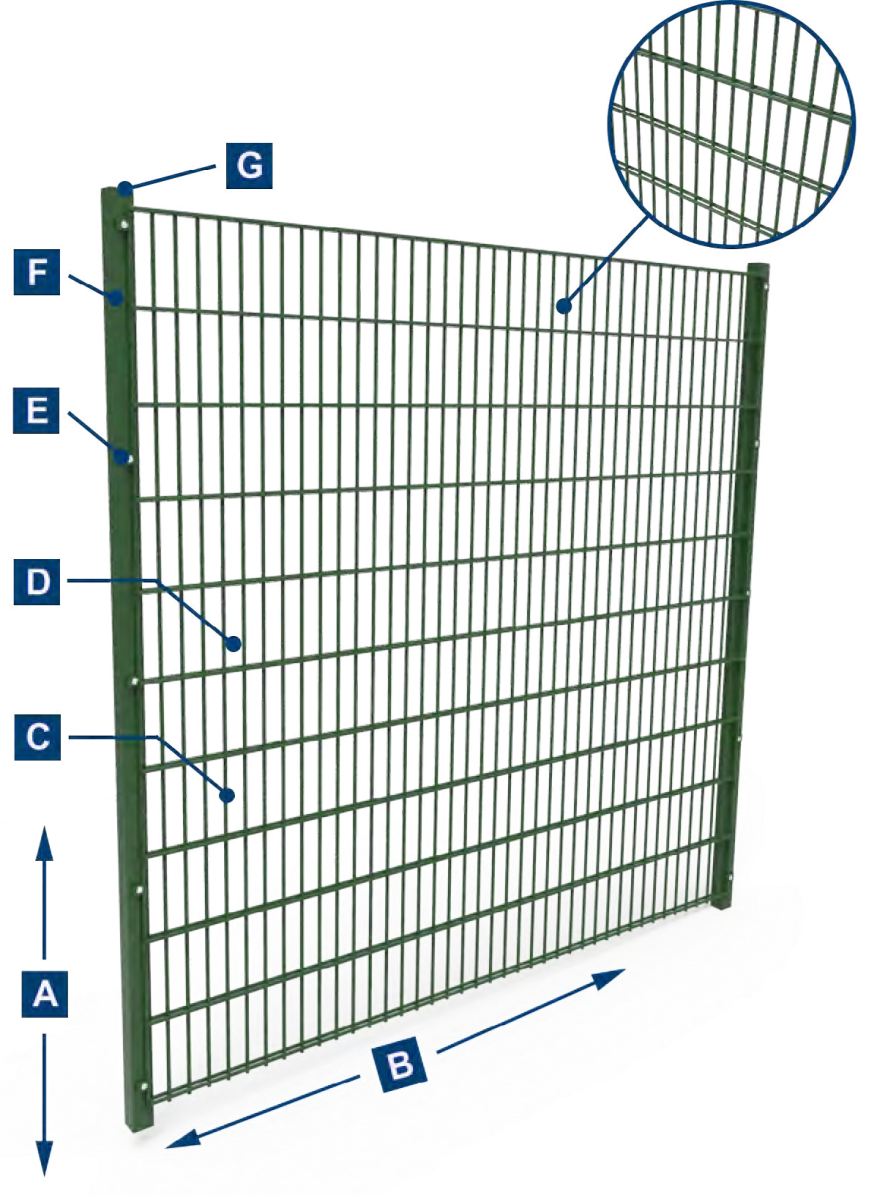

Specification

A Height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm
B Width: 2000 mm, 2500 mm, 3000 mm
C Wire Diameter: 6/5/6 mm, 8/6/8 mm
D Mesh Opening: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, mm, 55 × 200 mm, 75 × 100 mm
E Clamp: metal clamp, flat bar.
F Post: Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm); square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm); rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)
G Post Cap: metal cap / anti-UV plastic cap
All colors are available in Ral; Other materials and specifications are available upon request.

Components & Accessories

Panel Surface

The main components and connection methods of our double wire fence are as shown below.

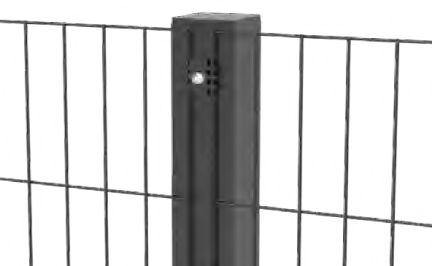

· Clamp bar connection· Metal clamp connection· Spider clip connection· U bolt connection· Square clamp connection

Optional Accessories

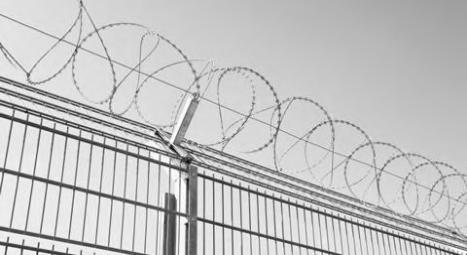

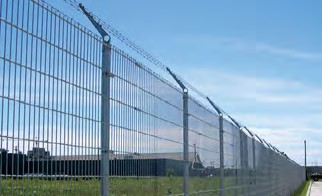

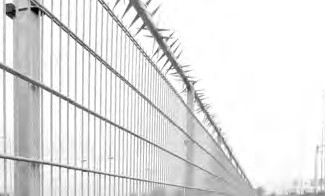

WALL SPIKESRAZOR WIRES

Production Flow Chart
Step 1 Raw materials (carbon steel wires)	Step 2 Steel wire straightening and cutting	Step 3 Wire mesh welding	Step 4 Wire mesh powder coating	Step 5 Finished double wire fence (powder coating)
