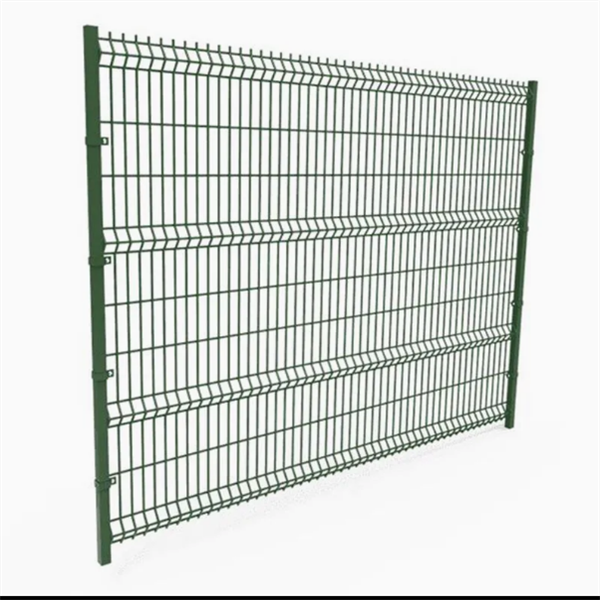

Curvy Welded Fence

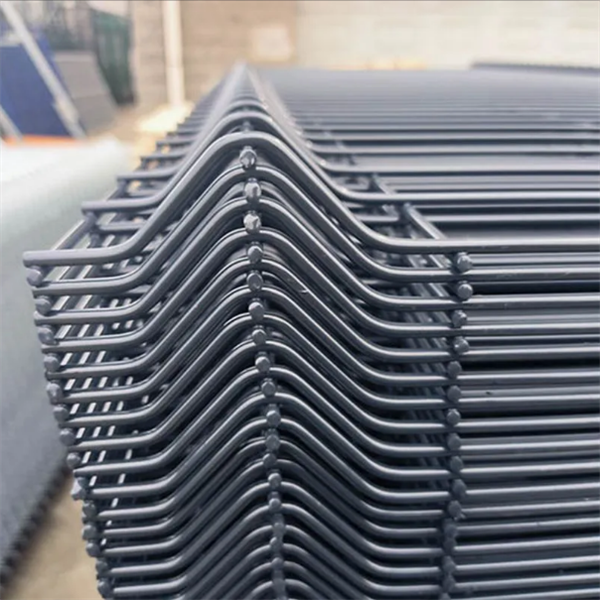

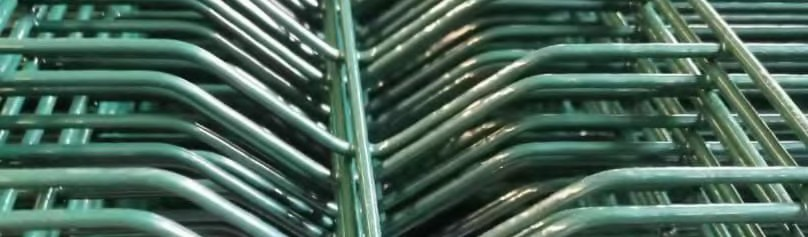

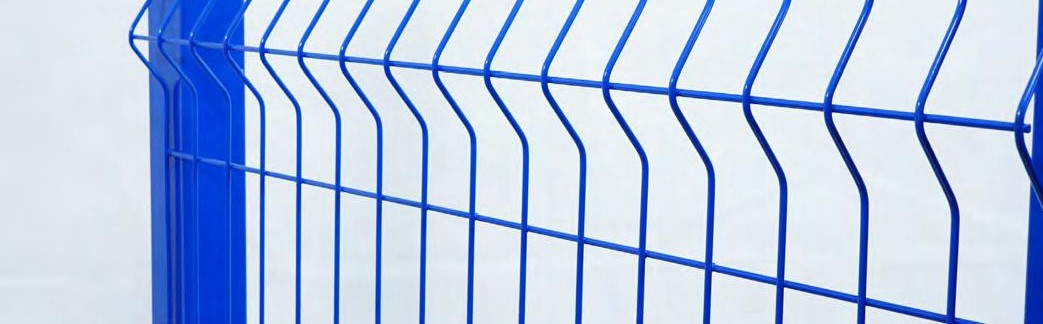

Curvy welded fence, also known as 3D security fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction.

It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence.

Generally, the number of V-shaped curves varies as the height of welded wire mesh varies.

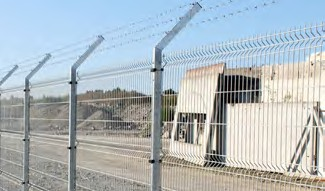

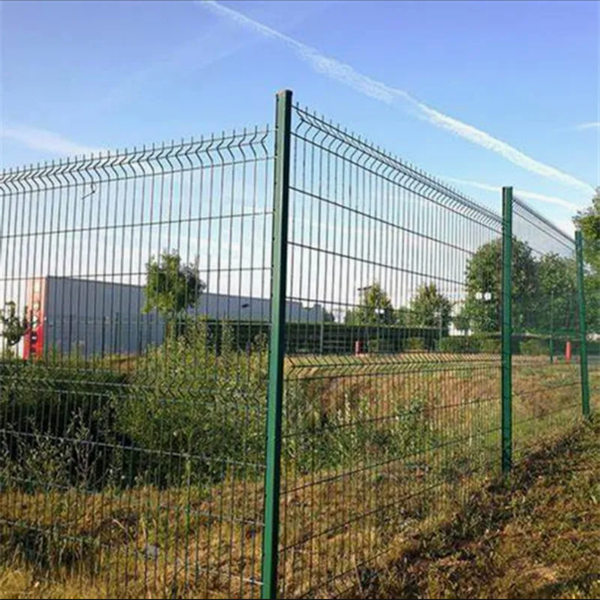

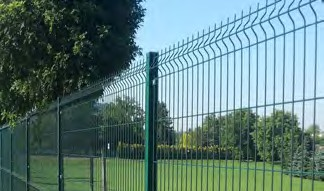

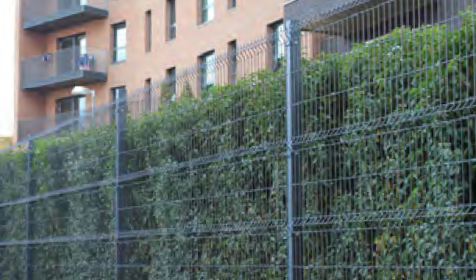

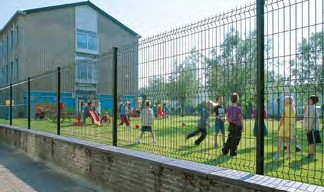

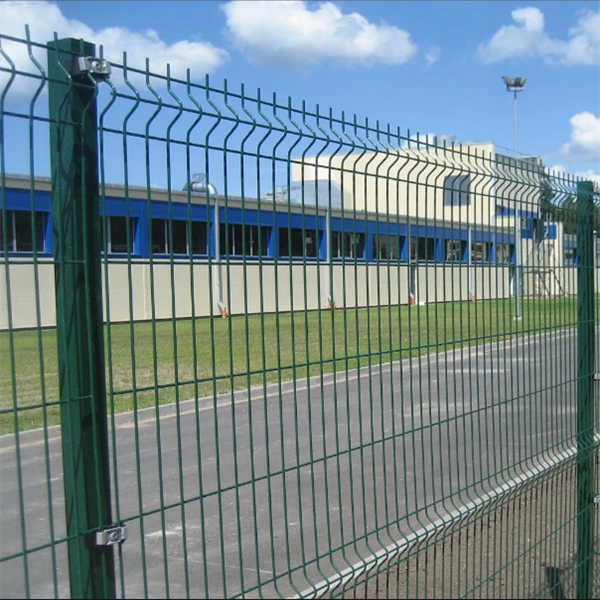

Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.

· Surface Treatment

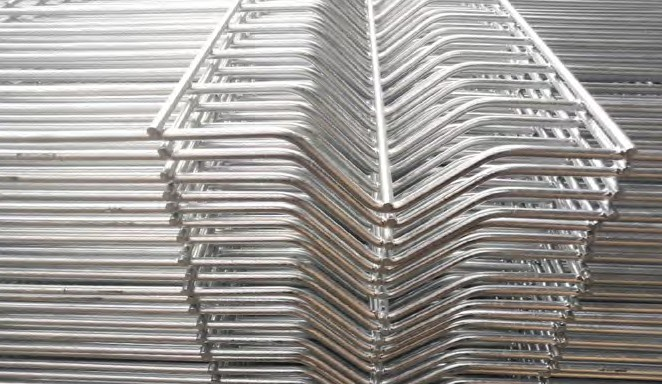

GalvanizedPowder coating

Specification

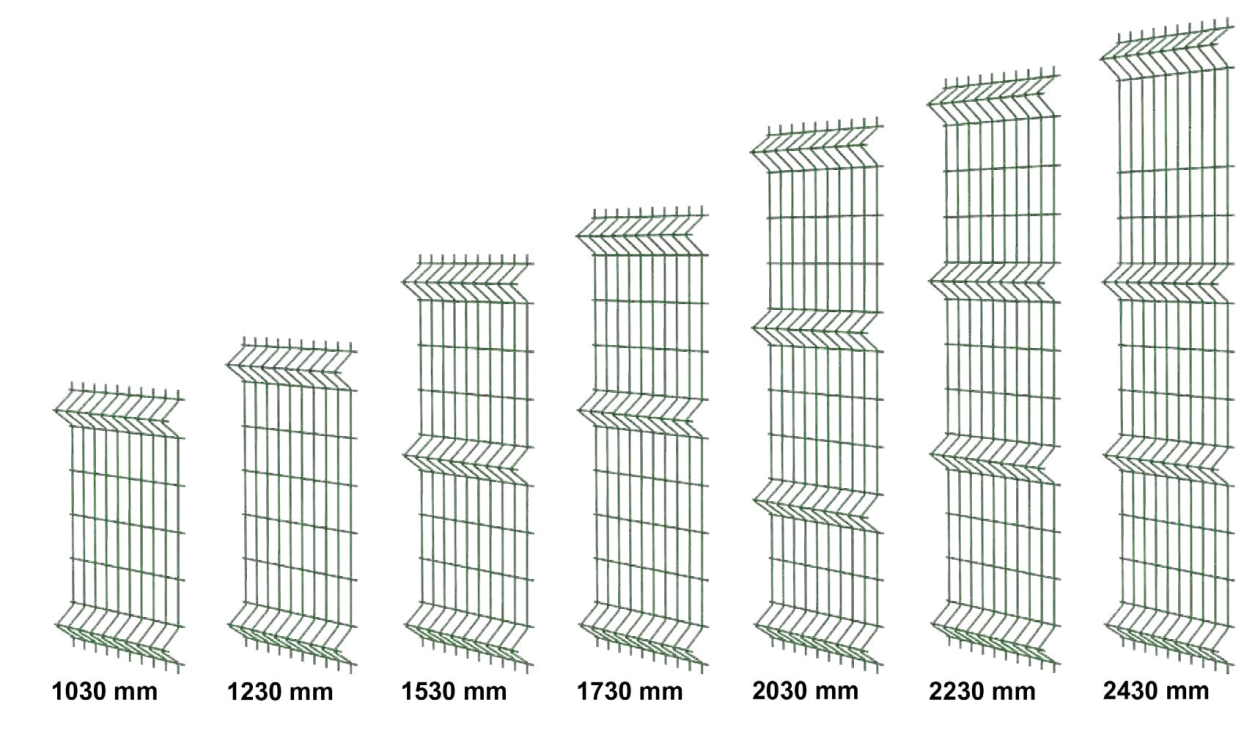

Relations between fence height and the number of folds

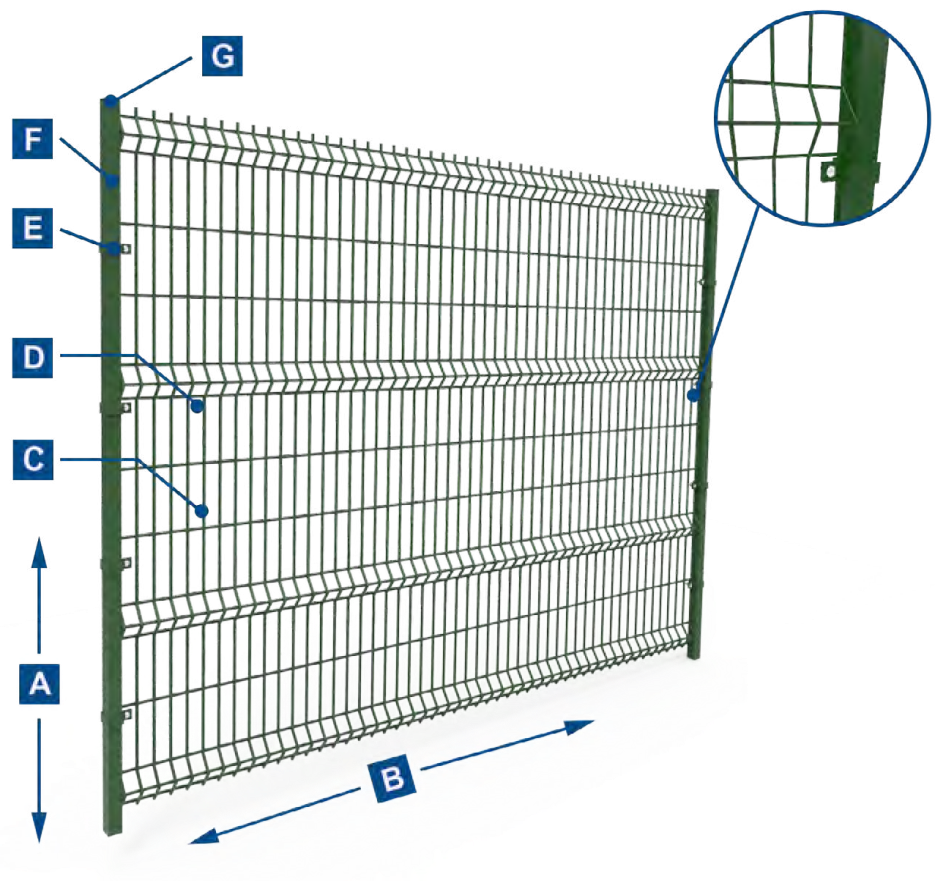

A Height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm
B Width: 2000 mm, 2500 mm, 2900 mm
C Wire Diameter: 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm
D Mesh Opening: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, mm, 75 × 100 mm, etc.
E Clamp: metal clamp/anti-UV plastic clamp/ no clamp (for peach post)
F Post: Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm); square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm); rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)
G Post Cap: metal cap / anti-UV plastic cap
All colors are available in Ral; Other materials and specifications are available upon request. If the fence height falls between 630 mm and 1430 mm, it will have 2 folds; if the fence height falls between 1530 mm and 1930 mm, it will have 3 folds; if the fence height falls between 2030 and 2430, it will have 4 folds as shown below.

Components & Accessories

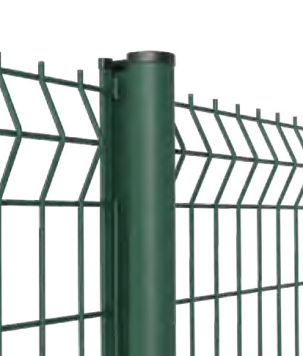

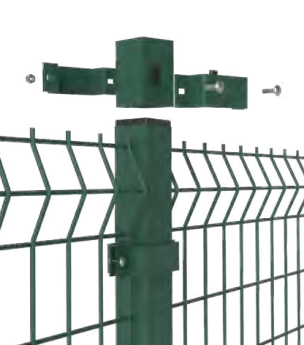

The main components and connection methods of our curvy welded fence are as shown below.

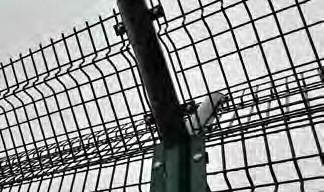

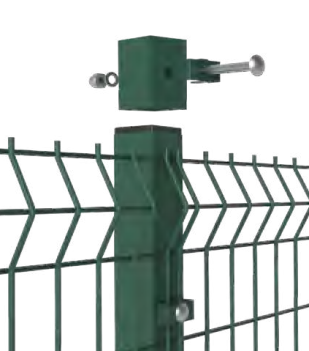

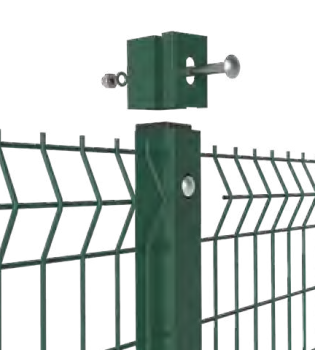

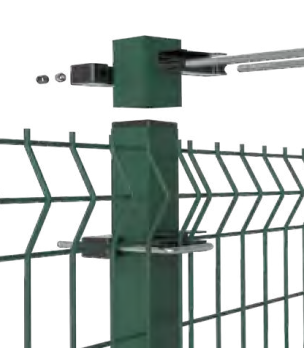

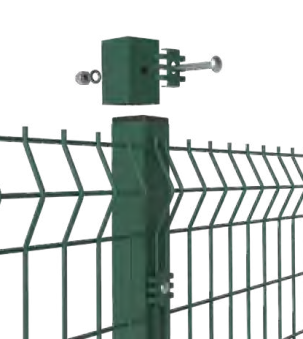

· M plastic clip connection· Metal clamp connection· Clamp bar connection· Peach post connection

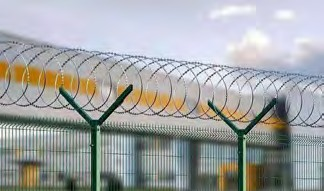

Optional Accessories

BARBED WIRERAZOR WIRE

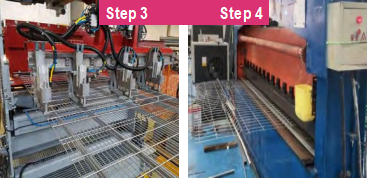

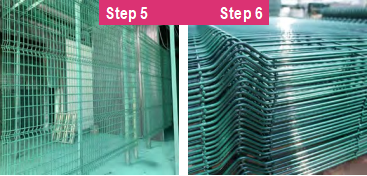

Production Flow Chart Step 1 Raw materials (galvanized steel wires) Step 2 Steel wire straightening and cutting Step 3 Wire mesh welding Step 4 Wire mesh bending Step 5 Fence panel powder coating Step 6 Finished 358 high security fence panels

Production Flow Chart
Step 1 Raw materials (carbon steel wires)	Step 2 Steel wire straightening and cutting	Step 3 Wire mesh welding	Step 4 Wire mesh bending	Step 5 Wire mesh powder coating	Step 6 Finished double wire fence (powder coating)

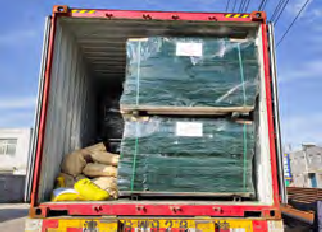

Package & Delivery

PANEL PACKAGEPOST PACKAGEFENCE DELIVERYFENCE TRANSPORTATION

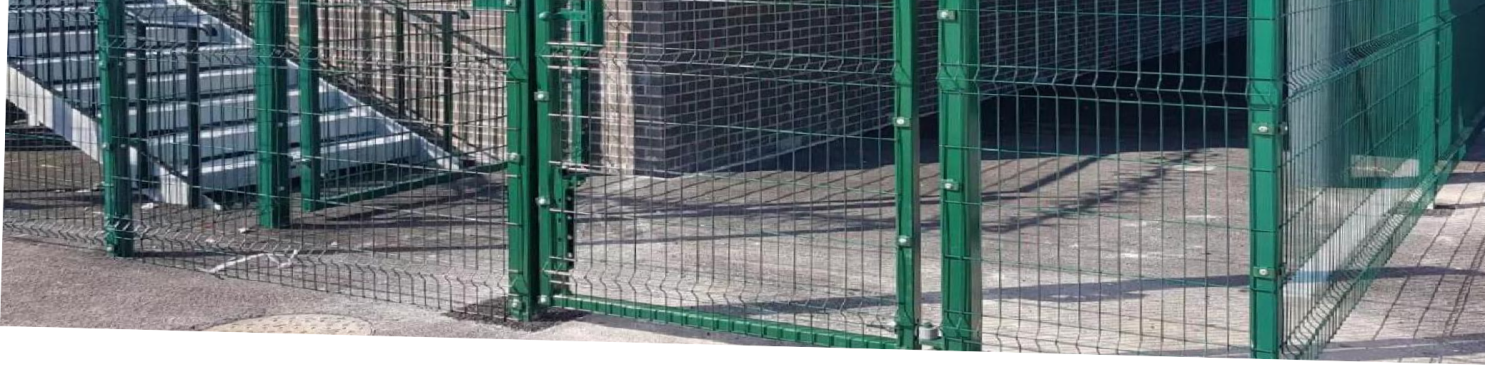

Curvy Welded Fence Gates

· Curvy Welded Fence Single Swing Gate

	Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
	Width	0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m
	Mesh Size	50 × 100 mm, 50 × 200 mm, 75 × 150 mm
	Wire Diameter	3.0–5.0 mm
	Post (square)	60 × 60 mm, 80 × 80 mm, 100 × 100 mm
	Frame Tube	20 × 20 mm, 25 × 25 mm, 30 × 30 mm
	Surface Treatment	Hot dipped galvanized, powder coated

· Curvy Welded Fence Double Swing Gate

· Curvy Welded Fence Sliding Gate

Features & Application

Features

● Corrosion resistance & weatherproof performance:
Its galvanized and powder coating surface give excellent rust & corrosion resistance to withstand various harsh environment conditions.

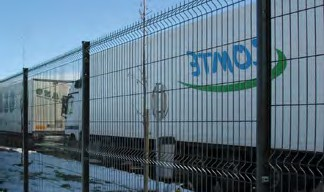

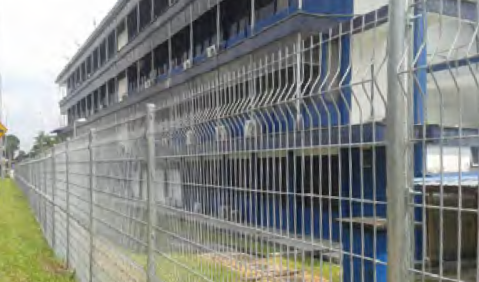

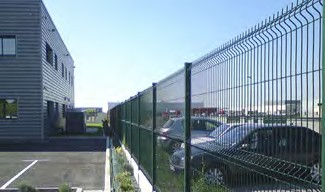

Application
